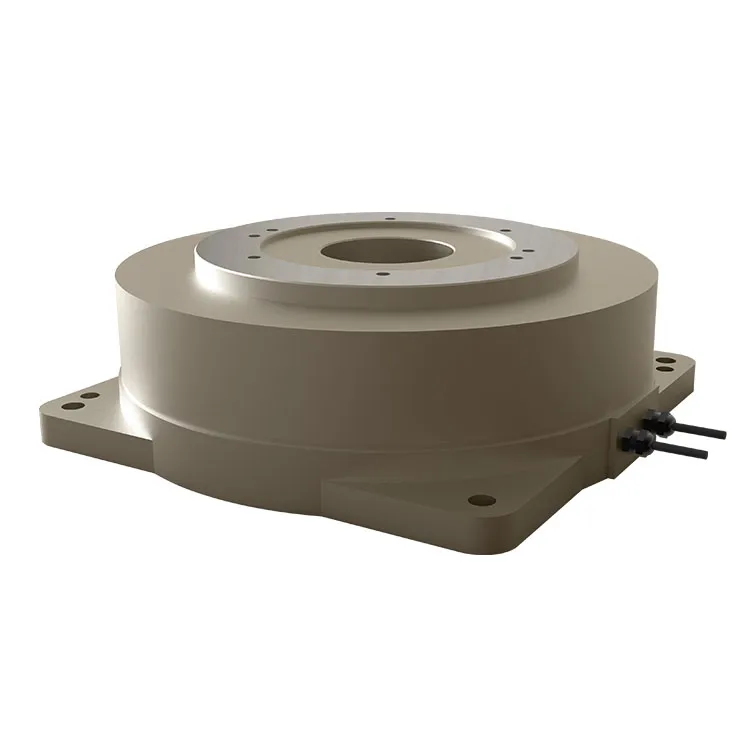

fe-170 series housed direct drive rotary motor

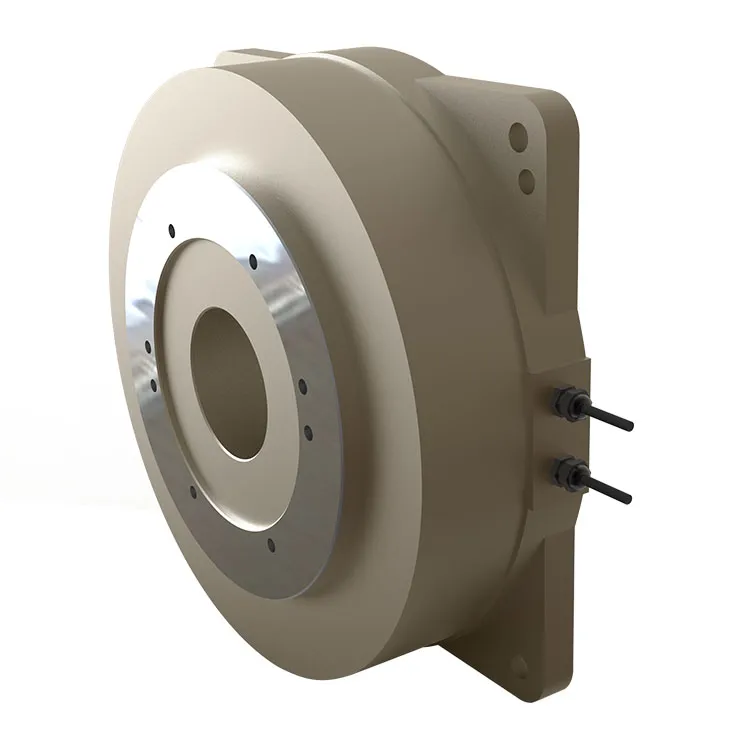

fe-170 series housed direct drive rotary motors 3d rendering

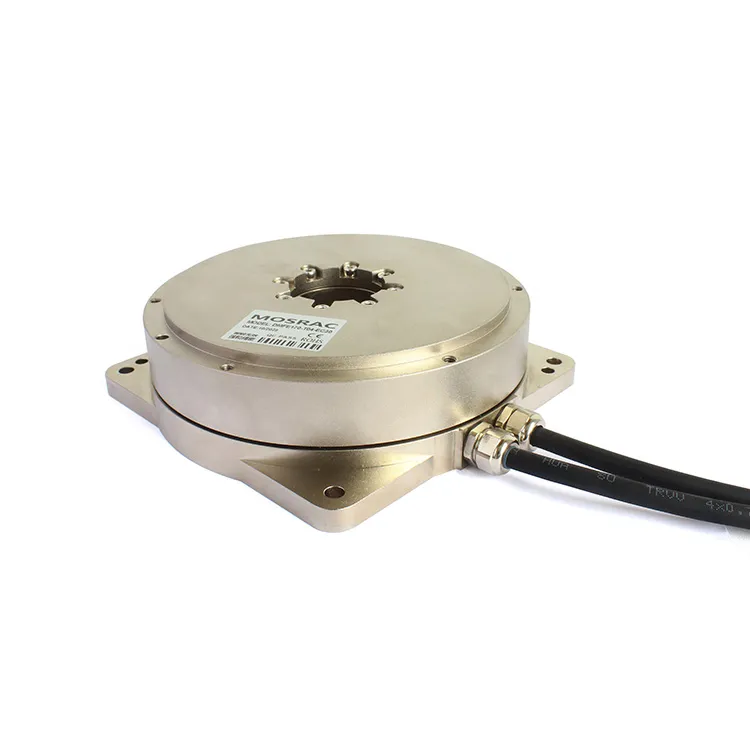

FE-170 series framed direct drive rotary motorOuter diameter ( OD ) : 170mm

The FE-170 series is a Housed Outer-rotor high torque motor, also known as DDR motor. It can be used in applications such as rotary table motors and robotics. rated torque options: 4.5Nm and 59.5Nm, with motor power ranging from 117.9W to 374.1W.

Online Enquiry

Send Inquiry

Download Catalog

Specification

Main Parameters	FE-17050	FE-17065	FE-17095	FE-170125	FE-170155
Voltage(VAC)	220	220	220	220	220
Rated torque(Nm)	4.5	9	23.8	41.8	59.5
Instant Max Torque(Nm)	14	26	71	125	179
Torque constant(Nm/Arms)	3.4	6	9.5	16.7	23.8
Rated Current(Arms)	1.4	1.5	2.5	2.5	2.5
Instant Max Current(Arms)	4.2	5	7.5	7.5	7.5
Resistance(Ω)	5	10	9.4	14.4	20
Inductance(mH)	7.6	29	17.9	34.7	45
Pole-pairs number(2P)	15	19	15	15	15
Back EMF coefficient(Vrims/rad/s)	2.8	4	7.8	13.6	19.4
Rated Output(W)	18.7	113	112.2	171.9	238.7
Rotor inertia (10^-4kg.m²)	68	76	230	320	410
Rated Speed(rpm)	120	120	120	120	120
Max Speed(rpm)	450	240	190	150	120
Positioning accuracy(arc_sec)	±20	±1	±20	±20	±20
Repeat positioning accuracy(arc_sec)	±1.5	2200	±1.5	±1.5	±1.5
Encoder resolution(sin/cos)	11740	11740	11740	11740	11740
Axial load(N)	4000	1000	15000	15000	15000
Radial load(N.m)	40	150	150	150	150
Axial runout(mm)	≤0.005	≤0.005	≤0.005	≤0.005	≤0.005
Radial runout(mm)	≤0.005	≤0.005	≤0.005	≤0.005	≤0.005
Weight(kg)	3.9	5.6	10.1	13.9	18.1
Motor height(mm)	50	65	95	125	155

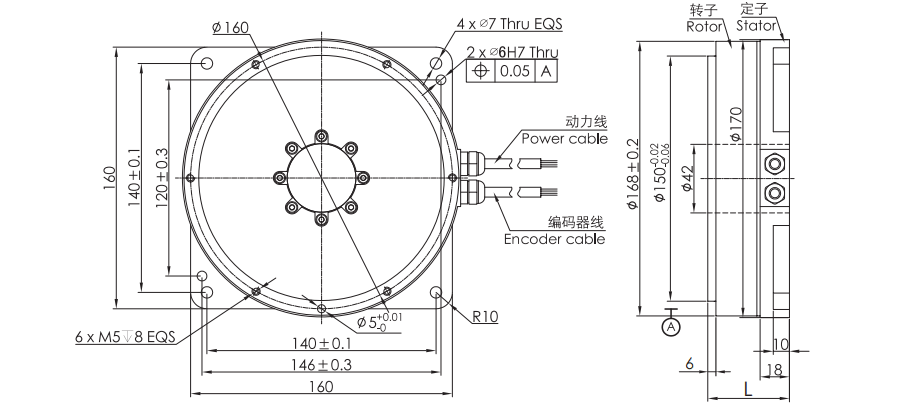

Drawing

Download

FE-17050 Torque Motor Catalog.pdf
OD: 170mm|Height: 50mm
FE-17065 Torque Motor Catalog.pdf
OD: 170mm|Height: 65mm
FE-17095 Torque Motor Catalog.pdf
OD: 170mm|Height: 95mm
FE-170125 Torque Motor Catalog.pdf
OD: 170mm|Height: 125mm
FE-170155 Torque Motor Catalog.pdf
OD: 170mm|Height: 155mm
FE-170 series framed direct drive rotary motor Catalog.pdf
OD: 170mm|Height: 50~65~95~125~155mm optional
