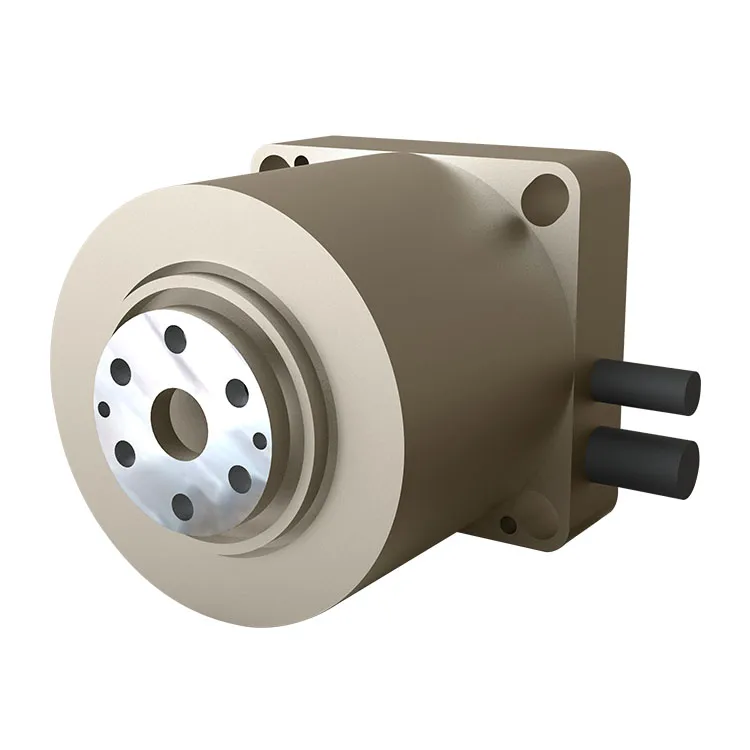

fi-40 series rotary torque motor 3d rendering

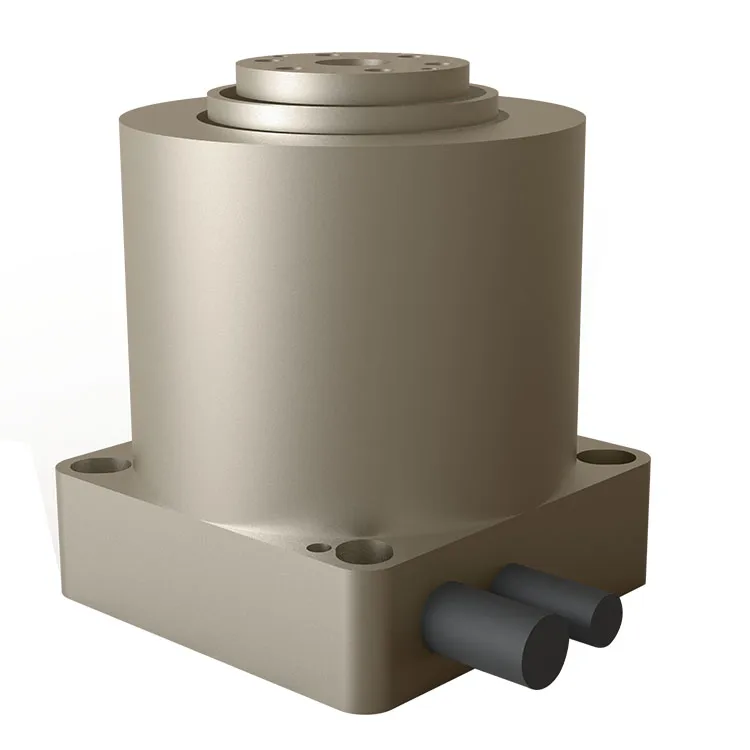

FI-40 Series Housed Direct Drive Rotary MotorOuter diameter ( OD ) : 40mm

The FI-40 series is a Housed Inner-rotor Torque Motor, also known as a direct drive rotary (DDR) motor. It can be used in applications such as rotary table motors. rated torque options: 0.25Nm and 0.5Nm, with motor power ranging from 7.9W to 15.7W, motor net weight approximately 0.4kgs to 0.55kgs.

Online Enquiry

Send Inquiry

Download Catalog

Specification

Main Parameters	FI-4048	FI-4065
Voltage(VDC)	48	48
Rated torque(Nm)	0.25	0.5
Instant Max Torque(Nm)	0.8	1.3
Torque constant(Nm/Arms)	0.1	0.17
Rated Current(Arms)	2.5	3
Instant Max Current(Arms)	8	8
Resistance(Ω)	1.8	2.4
Inductance(mH)	1.1	1.7
Pole-pairs number(2P)	7	7
Back EMF coefficient(Vrims/rad/s)	0.1	0.12
Rated Output(W)	7.9	15.7
Rotor inertia (10^-4kg.m²)	0.04	0.05
Rated Speed(rpm)	300	300
Max Speed(rpm)	600	600
Positioning accuracy(arc_sec)	±40	±40
Repeat positioning accuracy(arc_sec)	±5	±5
Encoder resolution(sin/cos)	2048	2048
Axial load(N)	600	600
Radial load(N.m)	6	6
Axial runout(mm)	≤0.01	≤0.01
Radial runout(mm)	≤0.01	≤0.01
Weight(kg)	0.4	0.55
Motor height(mm)	48	65

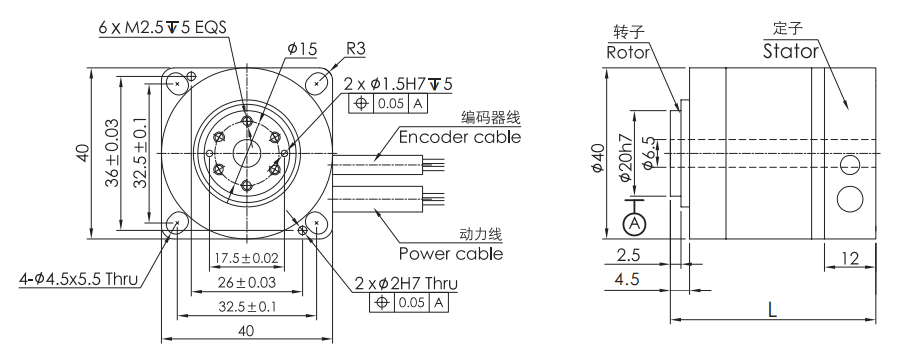

Drawing

Download

FI-4048 Torque Motor Catalog.pdf
OD: 40mm|Height: 48mm
FI-4065 Torque Motor Catalog.pdf
OD: 40mm|Height: 65mm
FI-40 Series Housed Direct Drive Rotary Motor Catalog.pdf
OD: 40mm|Height: 48~65mm optional
