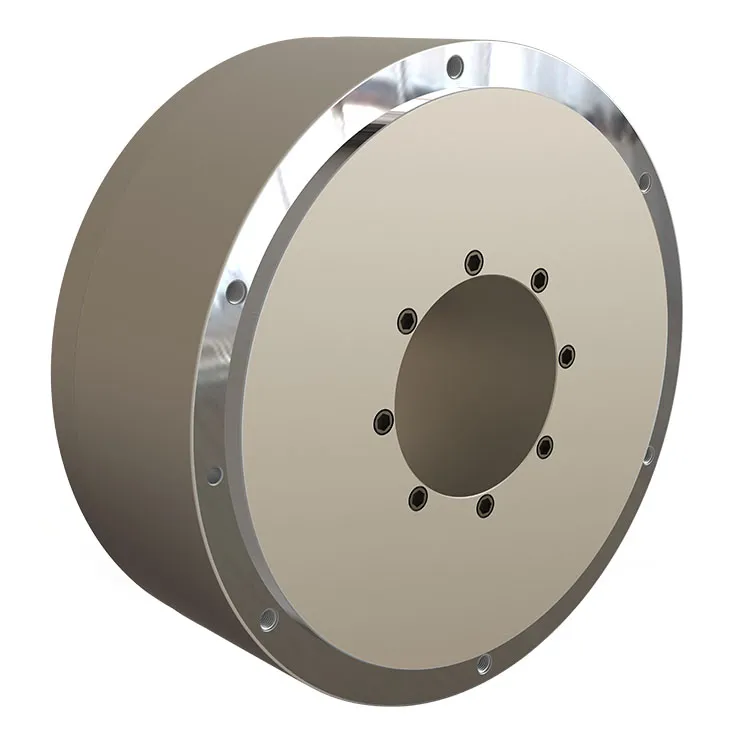

fe-263 series direct drive torque motor 3d rendering

front view of the fe-263 series direct drive torque motor

upturned fe-263 series direct drive torque motor

FE-263 series direct drive rotary (DDR) motorOuter diameter ( OD ) : 263mm

The FE-263 series is a Housed Outer-rotor Torque Motor, It can be used in applications such as rotary table motors. rated torque options: 95Nm to 250Nm, with motor power ranging from 796.5w to 1760.6W.

Online Enquiry

Send Inquiry

Download Catalog

Specification

Main Parameters	FE-263113	FE-263138	FE-263163	FE-263188
Voltage(VAC)	220	220	220	220
Rated torque(Nm)	95	150	210	250
Instant Max Torque(Nm)	190	300	420	500
Torque constant(Nm/Arms)	13.4	21.9	29.6	35.2
Rated Current(Arms)	7.1	7.1	7.1	7.1
Instant Max Current(Arms)	14.2	14.2	14.2	14.2
Resistance(Ω)	2.7	3.9	2	6.7
Inductance(mH)	8.3	13.4	7	22.8
Pole-pairs number(2P)	20	20	23	20
Back EMF coefficient(Vrims/rad/s)	10.9	17.9	10.1	28.7
Rated Output(W)	796.5	943.2	1760.6	1310
Rotor inertia (10^-4kg.m²)	1000	1500	1600	2100
Rated Speed(rpm)	80	60	80	50
Max Speed(rpm)	150	120	150	100
Positioning accuracy(arc_sec)	±20	±20	±20	±20
Repeat positioning accuracy(arc_sec)	±1.5	±1.5	±1.5	±1.5
Encoder resolution(sin/cos)	16384	16384	16384	16384
Axial load(N)	40000	40000	40000	40000
Radial load(N.m)	400	400	400	400
Axial runout(mm)	≤0.005	≤0.005	≤0.005	≤0.005
Radial runout(mm)	≤0.005	≤0.005	≤0.005	≤0.005
Weight(kg)	24.4	32.5	44	49.1
Motor height(mm)	113	138	163	188

Drawing

Download

FE-263113 Torque Motor Catalog.pdf
OD: 263mm|Height: 113mm
FE-263138 Torque Motor Catalog.pdf
OD: 263mm|Height: 138mm
FE-263163 Torque Motor Catalog.pdf
OD: 263mm|Height: 163mm
FE-263188 Torque Motor Catalog.pdf
OD: 263mm|Height: 188mm
FE-263 series direct drive rotary (DDR) motor Catalog.pdf
OD: 263mm|Height: 113~138~163~188mm optional
