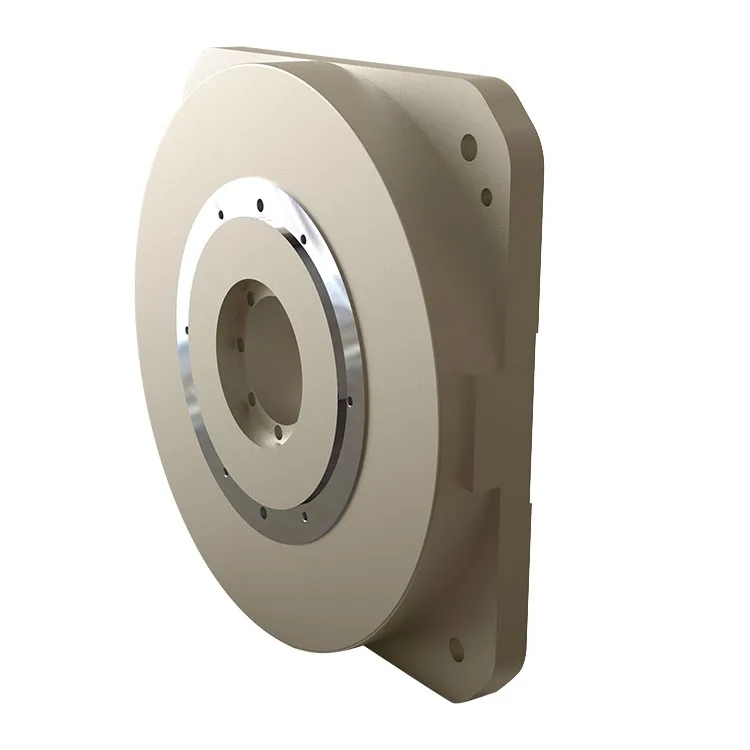

fe-224 series ddr torque motor 3d rendering

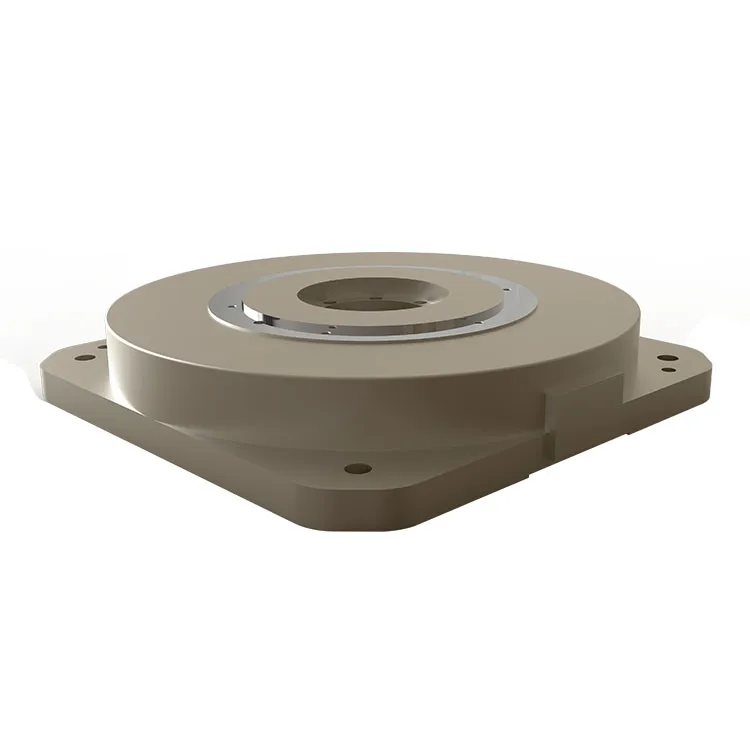

FE-224 series direct drive rotary (DDR) motorOuter diameter ( OD ) : 224mm

The FE-224 series is a Housed Outer-rotor Torque Motor, It can be used in applications such as rotary table motors and robotics. rated torque options: 14.1Nm and 35Nm, with motor power ranging from 295.5W to 366.8W.

Online Enquiry

Send Inquiry

Download Catalog

Specification

Main Parameters	FE-22442	FE-22462
Voltage(VAC)	220	220
Rated torque (Nm)	14.1	35
Instant Max Torque (Nm)	42.2	105
Torque constant (Nm/Arms)	6.4	15.7
Rated Current (Arms)	2.2	2.2
Instant Max Current (Arms)	6.6	6.6
Resistance (Ω)	7.5	13.8
Inductance (mH)	17.1	40
Pole-pairs number (2P)	20	20
Back EMF coefficient (Vrims/rad/s)	5.2	12.8
Rated Output (W)	295.5	366.8
Rotor inertia 10^-4kg.m²	120	300
Rated Speed (rpm)	200	100
Max Speed (rpm)	380	200
Positioning accuracy(arc_sec)	±20	±20
Repeat positioning accuracy (arc_sec)	±1.5	±1.5
Encoder resolution (sin/cos)	11740	16384
Axial load (N)	10000	10000
Radial load (N.m)	120	120
Axial runout (mm)	≤0.005	≤0.005
Radial runout (mm)	≤0.005	≤0.005
Weight (kg)	5.5	9.2
Motor height L(mm)	42	62

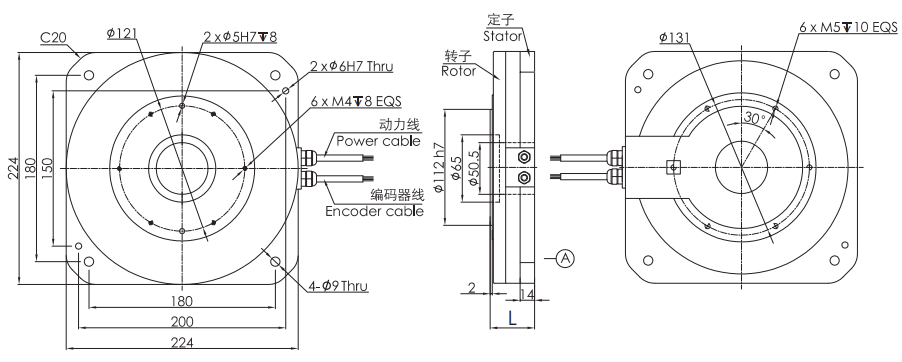

Drawing

Download

FE-22442 Torque Motor Catalog.pdf
OD: 224mm|Height: 42mm
FE-22462 Torque Motor Catalog.pdf
OD: 224mm|Height: 62mm
FE-224 series direct drive rotary (DDR) motor Catalog.pdf
OD: 224mm|Height: 42~62mm optional
