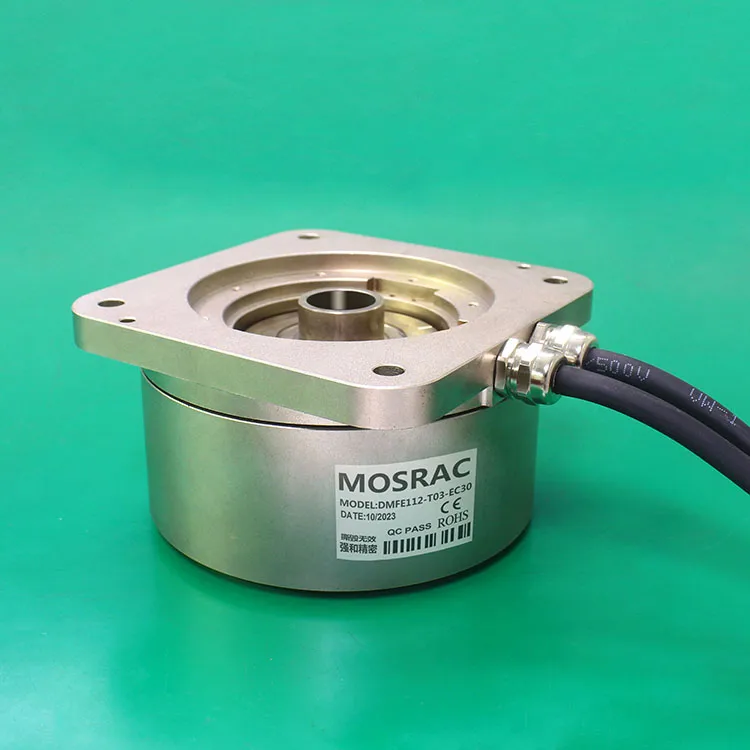

front view of the upturned fe-112 series direct drive rotary motor

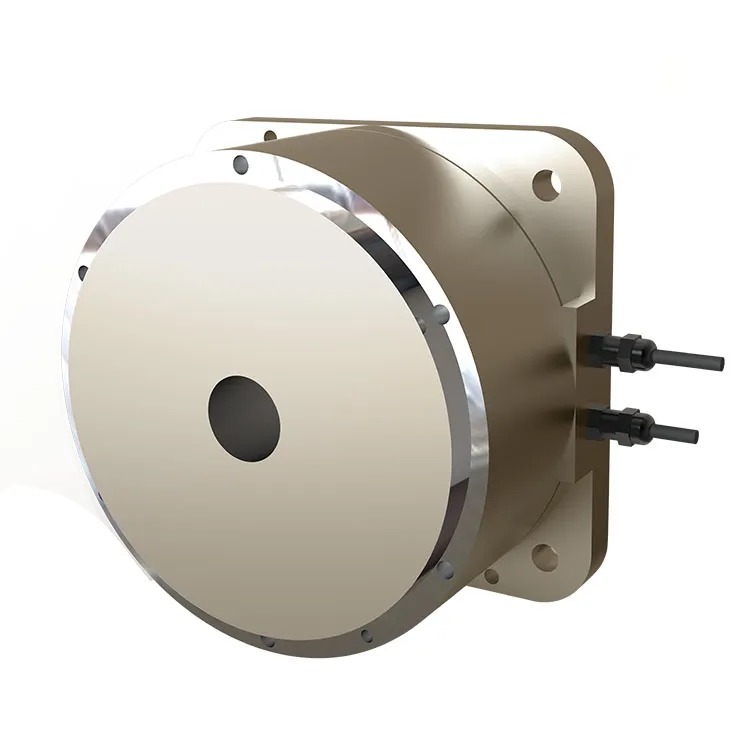

front view of the fe-112 series direct drive rotary motor 3d rendering

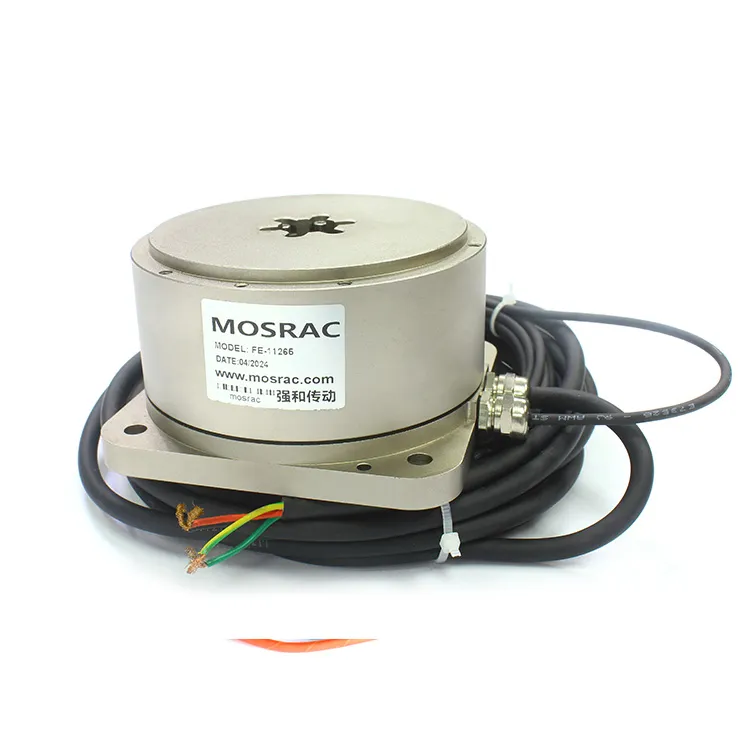

FE-112 series direct drive rotary (DDR) motorOuter diameter ( OD ) : 112mm

The FE-112 series is a Housed Outer-rotor Torque Motor, rated torque options: 3Nm and 8.5Nm, with motor power ranging is 62.9w to 133.6W, motor net weight approximately 3.2kgs to 4.5kgs.

Request Quote

Download Catalog

Specification

Main Parameters	FE-11265	FE-11295
Voltage(VAC)	220	220
Rated torque(Nm)	3	8.5
Instant Max Torque(Nm)	9	25.5
Torque constant(Nm/Arms)	1.2	3.4
Rated Current(Arms)	2.5	2.5
Instant Max Current(Arms)	7.5	7.5
Resistance(Ω)	2.2	4.6
Inductance(mH)	1.8	4.2
Pole-pairs number(2P)	14	14
Back EMF coefficient(Vrims/rad/s)	1	2.8
Rated Output(W)	62.9	133.6
Rotor inertia (10^-4kg.m²)	26	38
Rated Speed(rpm)	200	150
Max Speed(rpm)	350	250
Positioning accuracy(arc_sec)	±20	±20
Repeat positioning accuracy(arc_sec)	±1.5	±1.5
Encoder resolution(sin/cos)	8192	8192
Axial load(N)	2500	2500
Radial load(N.m)	20	20
Axial runout(mm)	≤0.005	≤0.005
Radial runout(mm)	≤0.005	≤0.005
Weight(kg)	3.2	4.5
Motor height(mm)	65	95

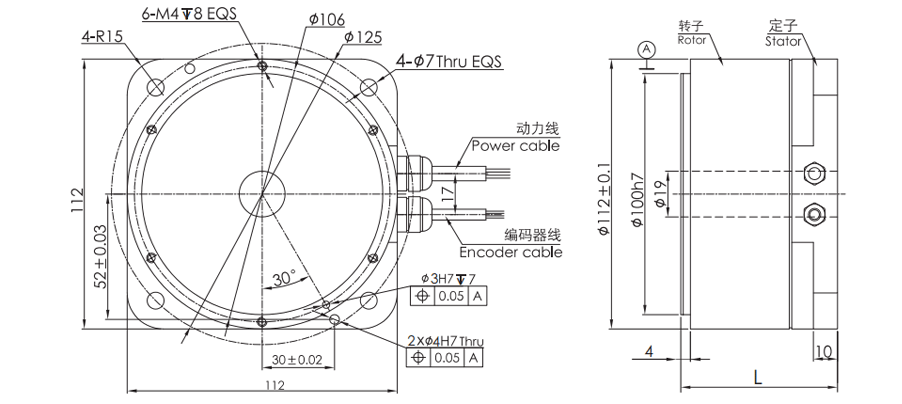

Drawing

Download

FE-11265 Torque Motor Catalog.pdf
OD: 112mm|Height: 65mm
FE-11295 Torque Motor Catalog.pdf
OD: 112mm|Height: 95mm
FE-112 series direct drive rotary (DDR) motor Catalog.pdf
OD: 112mm|Height: 65~95mm optional

Direct drives need high-quality position signals to ensure optimal performance. Perfect measuring signals can enhance the surface quality of machined workpieces, reduce the machine frame's vibrations, minimize velocity-dependent motor noise, and prevent excessive heat generation in the motor.

Mosrac recommends using a magnetic encoder to enhance the accuracy, speed stability, and thermal behavior of direct drive axes. Because there is no mechanical transmission between the encoder and the feed unit, the position signals are not susceptible to inaccuracies or delays.

Custom combinations are available on request and contact us.
