Mosrac direct drive torque motors

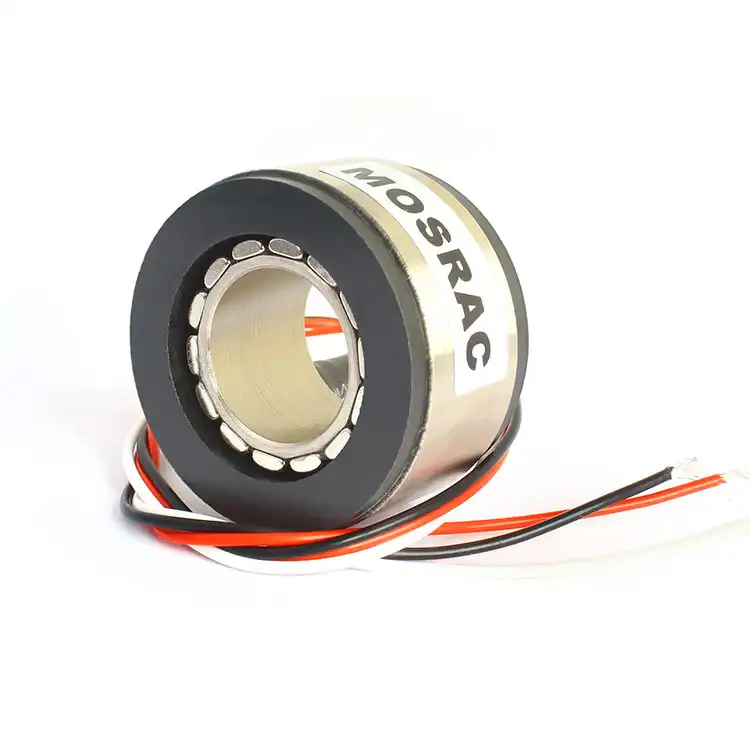

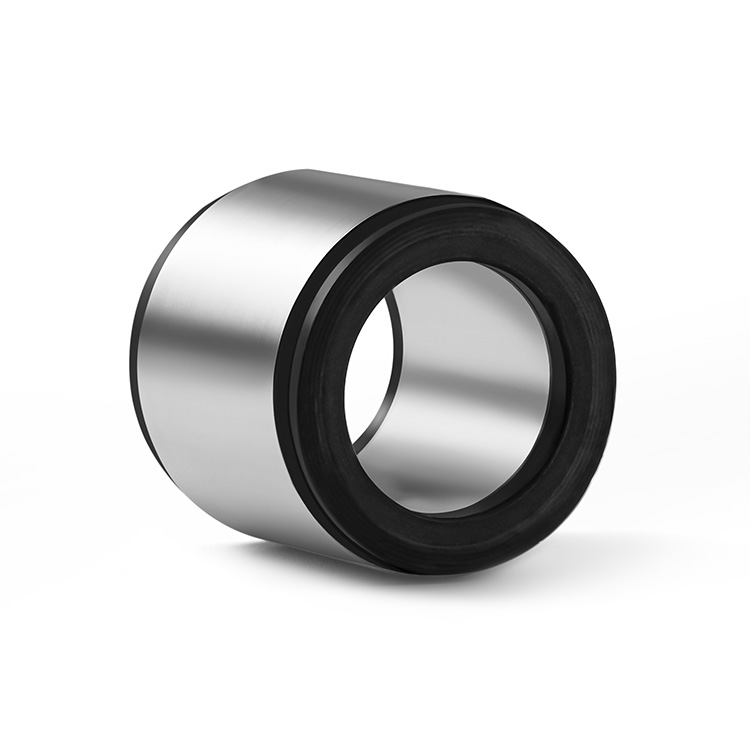

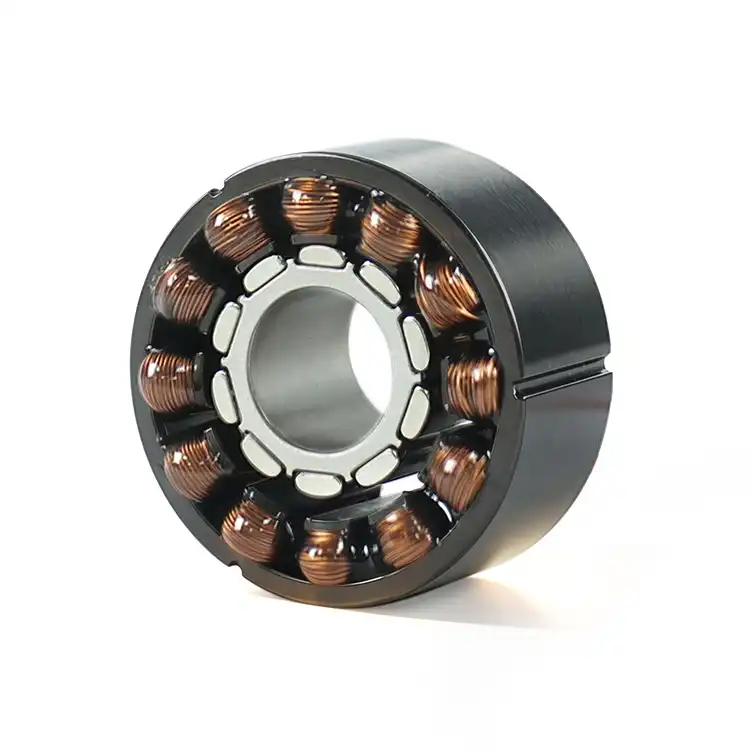

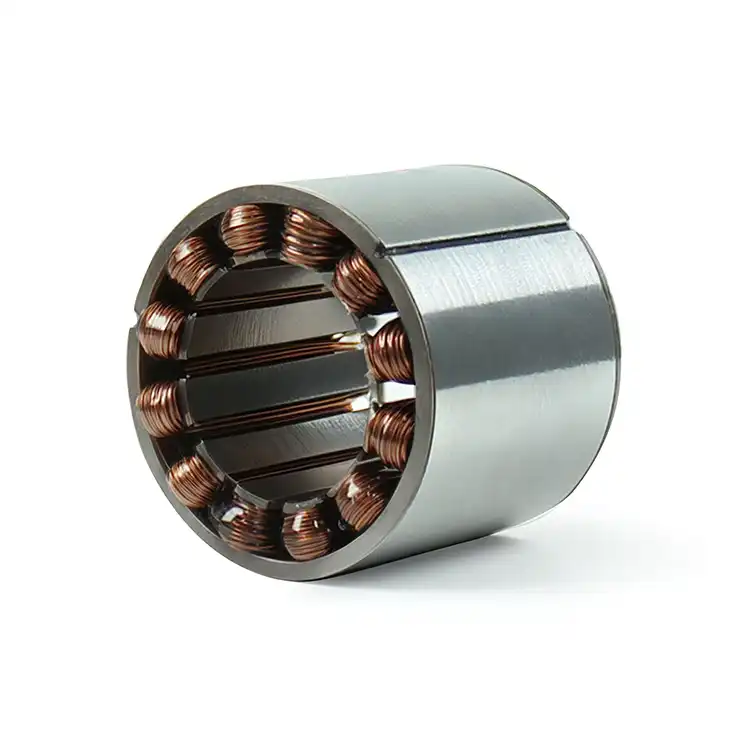

u1919 series frameless brushless torque motor

U19 Series 19MM Motore FramelessOuter diameter ( OD ) : 19mm

12.58-16.77 W | 0.02-0.04 Nm | 4000-8000 rpm | 24 V


Our inrunner motore frameless are the right motors for your systems. They offer:


  • ▪︎ Direct drive brushless motor

  • ▪︎ Low cogging torque

  • ▪︎ Low-speed and high-speed windings

Specification


Main ParametersU1919U1934
Voltage(VDC)2424
Rated Output(W)12.5816.77
Rated torque(Nm)0.020.04
Instant Max Torque(Nm)0.050.11
Rated Current(Arms)22.5
Instant Max Current(Arms)5.57.5
Rated Speed(rpm)60004000
Max Speed(rpm)80006000
Torque Parameter(Nm/Arms)0.010.02
Rotor inertia10-4kg.m²0.0050.01
Back EMF coefficient(Vrims/rad/s)1.52.4
Resistance(Ω)1.91.8
Inductance(mH)0.40.38
Pole-pairs number(2P)55
Weight(kg)19.934.9
Motor height(mm)L11631
L215
30
L319.9
34.9

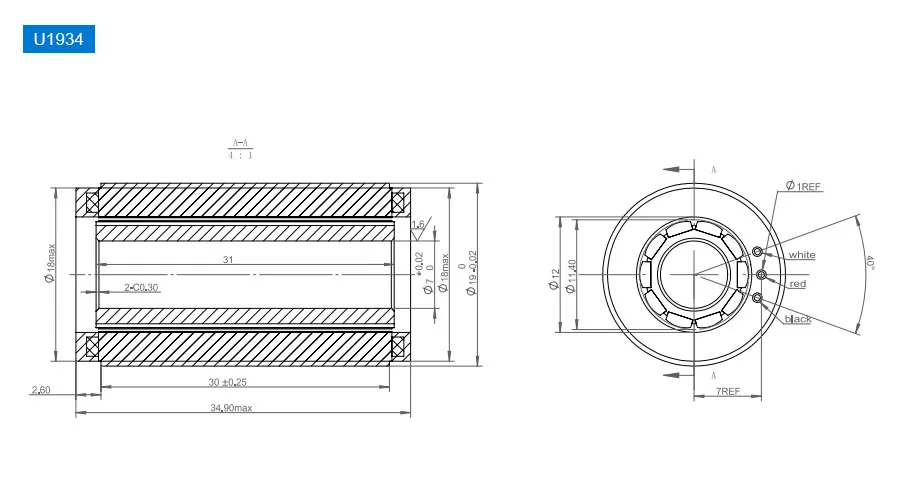

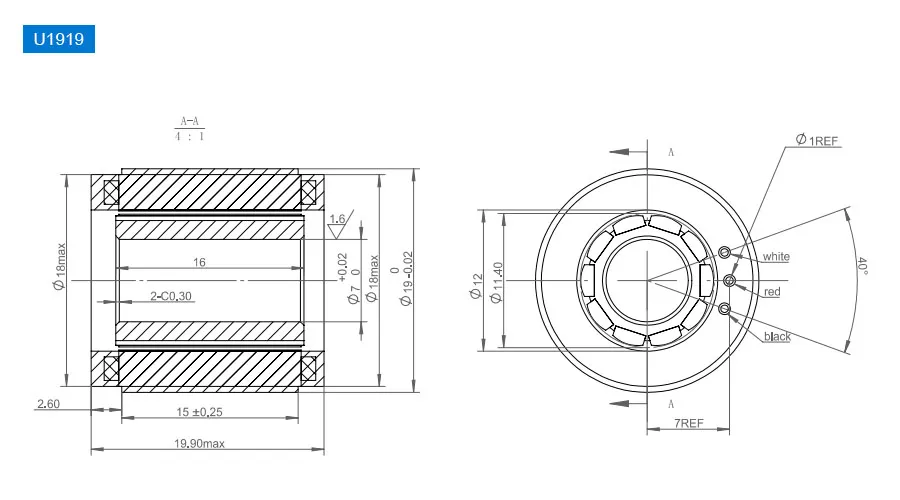

Drawing

OD 19mm series Frameless Direct Drive Torque Motors drawing OD 19mm series Frameless Direct Drive Torque Motors drawing OD 19mm series Frameless Direct Drive Torque Motors drawing

Additional Info


Features:

  • ▪︎ Frame size 19 mm OD

  • ▪︎ Max speeds up to 8000 rpm

  • ▪︎ Pole-pairs number (2P): 5 or custom

  • ▪︎ 24 VDC Rated Voltage

  • ▪︎ 2.00-2.50 Arms Rated Current

  • ▪︎ Continuous torque range from 0.02 N-m to 0.04 N-m

  • ▪︎ Peak torque range from 0.05 N-m to 0.11 N-m

  • ▪︎ CE, RoHS, REACH Compliant

  • ▪︎ Standard windings to match special speed and torque performance requirements

  • ▪︎ Optional Hall sensors or encoders as rotor position feedback devices

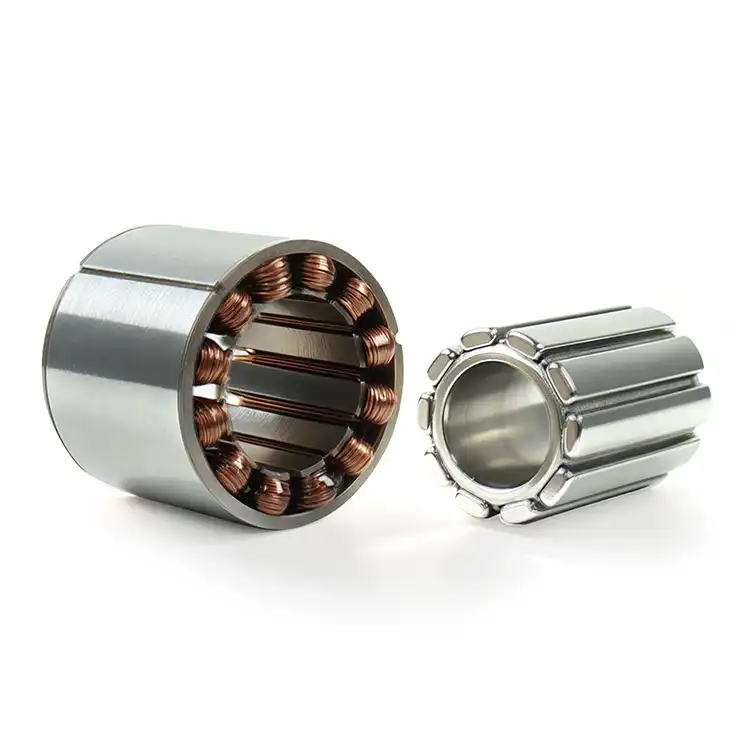

  • ▪︎ Frameless models use the load’s shaft, bearings, Hall sensors, and additional position feedback devices such as encoders.



Benefits:

One of the latest next-generation frameless motors is hollow-shaft U19 series motore frameless kits,

which offer market-leading torque density and maximum design freedom for structurally integrated drive engineering.


Our frameless BLDC motor range is available in various sizes and rated torque.


  • ▪︎ Frameless construction provides a high level of design flexibility

  • ▪︎ Offers excellent torque density at a competitive price

  • ▪︎ Features hollow-shaft capability

  • ▪︎ Lightweight and compact design

  • ▪︎ Operates on low voltage, ranging from 12V to 48V

  • ▪︎ High torque density and dynamic performance are achieved through an excellent copper fill factor

  • ▪︎ Reduced thermal losses due to concentrated coils

  • ▪︎ Drive system design is optimized for weight and installation space based on load profile analysis

  • ▪︎ Provides excellent dynamic control and precision

  • ▪︎ Ideal for a diverse range of applications


Applications:

  • ▪︎ Machine tool

  • ▪︎ Packaging

  • ▪︎ Robotics

  • ▪︎ Semiconductor

  • ▪︎ Automotive


When to Use:

  • ▪︎ Substantial cost savings

  • ▪︎ Decreased mechanical complexity

  • ▪︎ Enhanced flexibility in design

  • ▪︎ Exceptional performance in a compact space

  • ▪︎ Improved dynamic response

  • ▪︎ Minimum motor size in each application

  • ▪︎ Low cogging for smooth operation

  • ▪︎ Low inertia allows for quicker acceleration

Download

  • U1919 Torque Motor Catalog.pdf

    OD: 19mm|Height: 19.9mm

  • U1934 Torque Motor Catalog.pdf

    OD: 19mm|Height: 34.9mm

  • U19 Series 19MM Motore Frameless Catalog.pdf

    OD: 19mm|Height: 19.9~34.9mm optional

  • U1919.STEP

    OD: 19mm|Height: 19.9mm

  • U1934.STEP

    OD: 19mm|Height: 34.9mm

  • CE Certificate.pdf

  • RoHS Certificate.pdf

  • REACH Certificate.pdf

  • IS09001 Certificate.pdf

  • Direct drives need high-quality position signals to ensure optimal performance. Perfect measuring signals can enhance the surface quality of machined workpieces, reduce the machine frame's vibrations, minimize velocity-dependent motor noise, and prevent excessive heat generation in the motor.


    Mosrac recommends using a magnetic encoder to enhance the accuracy, speed stability, and thermal behavior of direct drive axes. Because there is no mechanical transmission between the encoder and the feed unit, the position signals are not susceptible to inaccuracies or delays.

    Custom combinations are available on request and contact us.
