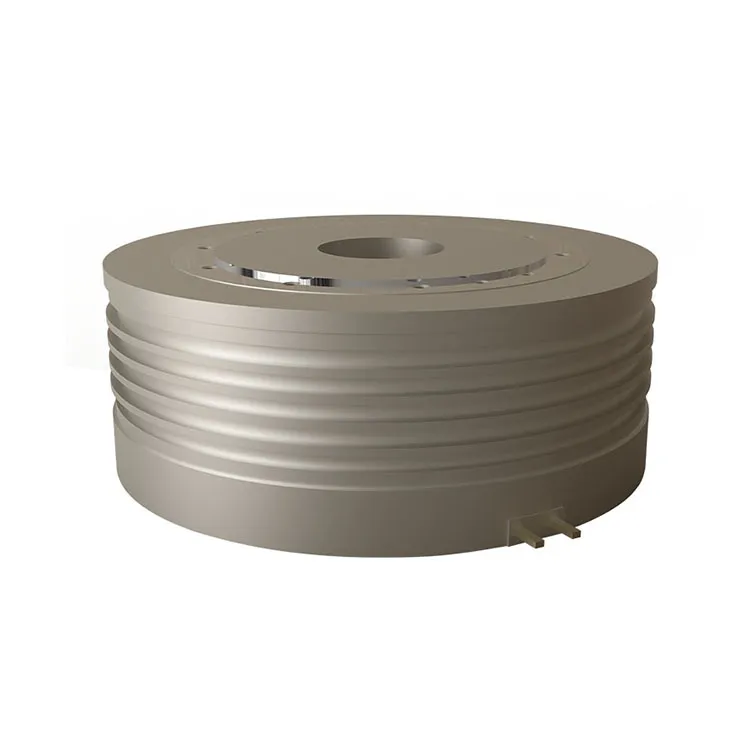

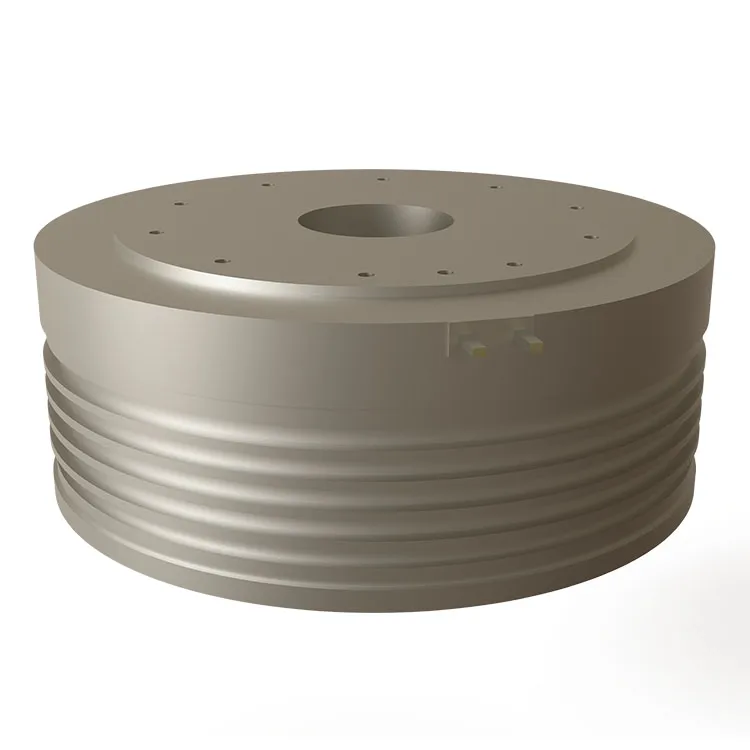

front view of the upturned fi-375 series direct drive torque motor

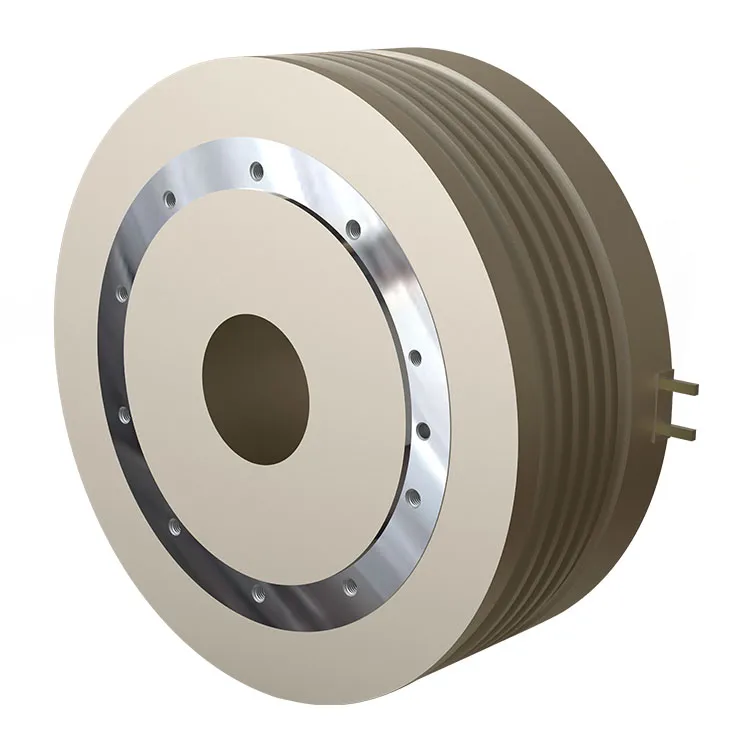

fi-375 series direct drive torque motor 3d rendering

FI-375 series direct drive rotary (DDR) motorOuter diameter ( OD ) : 375mm

The FI-375 series is a Housed Inner-rotor Torque Motor, rated torque options: 200Nm to 320Nm, with motor power ranging is 1257.6w to 2012.2W, motor net weight approximately 75kgs to 90kgs.

Request Quote

Download Catalog

Specification

Main Parameters	FI-375150	FI-375200
Voltage(VAC)	220	220
Rated torque(Nm)	200	320
Instant Max Torque(Nm)	625	1000
Torque constant(Nm/Arms)	25	45
Rated Current(Arms)	8	8
Instant Max Current(Arms)	25	25
Resistance(Ω)	5.2	5.2
Inductance(mH)	32	32
Pole-pairs number(2P)	42	42
Back EMF coefficient(Vrims/rad/s)	18.8	26.6
Rated Output(W)	1257.6	2012.2
Rotor inertia (10^-4kg.m²)	3900	5200
Rated Speed(rpm)	60	60
Max Speed(rpm)	120	120
Positioning accuracy(arc_sec)	±20	±20
Repeat positioning accuracy(arc_sec)	±1.5	±1.5
Encoder resolution(sin/cos)	16384	16384
Axial load(N)	20000	20000
Radial load(N.m)	1200	1200
Axial runout(mm)	≤0.005	≤0.005
Radial runout(mm)	≤0.005	≤0.005
Weight(kg)	75	90
Motor height(mm)	150	200

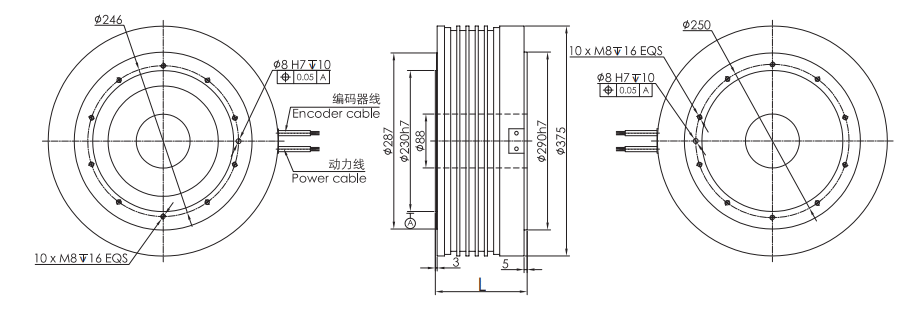

Drawing

Download

FI-375150 Torque Motor Catalog.pdf
OD: 375mm|Height: 150mm
FI-375200 Torque Motor Catalog.pdf
OD: 375mm|Height: 200mm
FI-375 series direct drive rotary (DDR) motor Catalog.pdf
OD: 375mm|Height: 150~200mm optional

Direct drives need high-quality position signals to ensure optimal performance. Perfect measuring signals can enhance the surface quality of machined workpieces, reduce the machine frame's vibrations, minimize velocity-dependent motor noise, and prevent excessive heat generation in the motor.

Mosrac recommends using a magnetic encoder to enhance the accuracy, speed stability, and thermal behavior of direct drive axes. Because there is no mechanical transmission between the encoder and the feed unit, the position signals are not susceptible to inaccuracies or delays.

Custom combinations are available on request and contact us.
