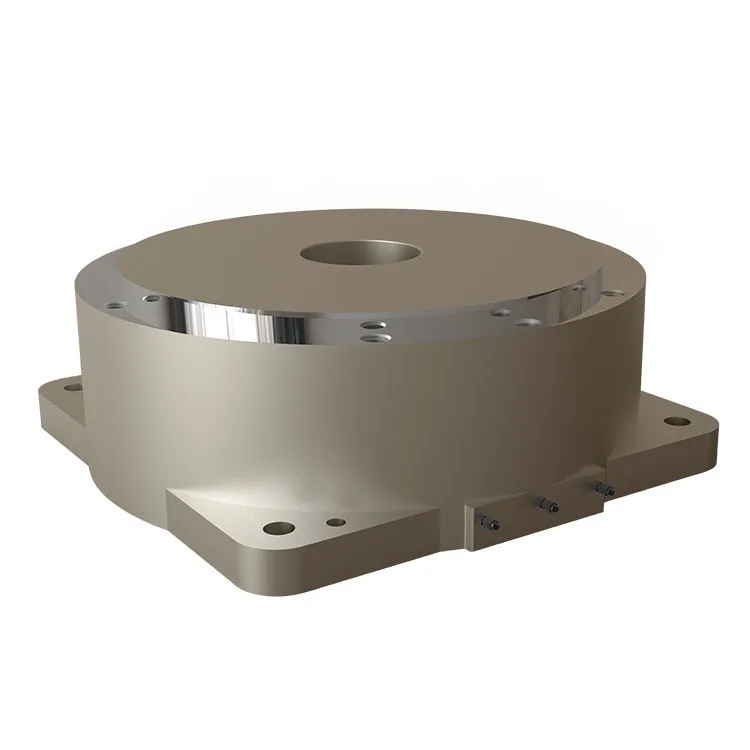

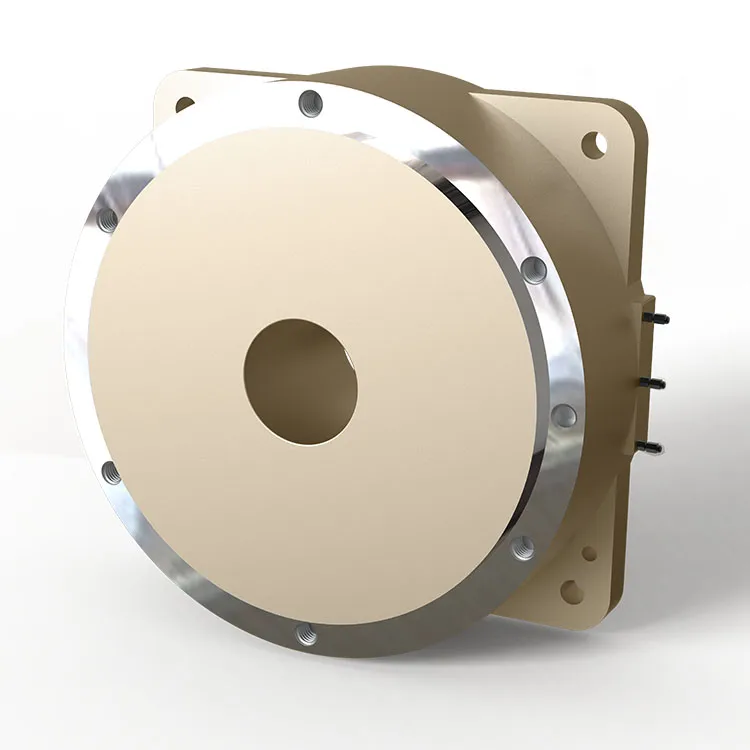

fe-140 series ddr direct drive motor 3d rendering

FE-140 series DDR Direct Drive MotorOuter diameter ( OD ) : 140mm

The FE-140 series is a Outer-rotor DDR motors. rated torque options: 6Nm and 10.5Nm, with motor power ranging from 188.6W to 220.1W, motor net weight approximately 03.4kgs to 5.6kgs.

Online Enquiry

Send Inquiry

Download Catalog

Specification

Main Parameters	FE-14050	FE-14080
Voltage(VAC)	220	220
Rated torque(Nm)	6	10.5
Instant Max Torque(Nm)	16.8	28
Torque constant(Nm/Arms)	2.4	4.2
Rated Current(Arms)	2.5	2.5
Instant Max Current(Arms)	7	7
Resistance(Ω)	3.7	5.9
Inductance(mH)	3.8	6
Pole-pairs number(2P)	14	14
Back EMF coefficient(Vrims/rad/s)	2	3.4
Rated Output(W)	188.6	220.1
Rotor inertia (10^-4kg.m²)	45	76
Rated Speed(rpm)	300	200
Max Speed(rpm)	600	350
Positioning accuracy(arc_sec)	±20	±20
Repeat positioning accuracy(arc_sec)	±1.5	±1.5
Encoder resolution(sin/cos)	8192	8192
Axial load(N)	2500	2500
Radial load(N.m)	20	20
Axial runout(mm)	≤0.005	≤0.005
Radial runout(mm)	≤0.005	≤0.005
Weight(kg)	3.4	5.6
Motor height(mm)	50	80

Drawing

Download

FE-14050 Torque Motor Catalog.pdf
OD: 140mm|Height: 50mm
FE-14080 Torque Motor Catalog.pdf
OD: 140mm|Height: 80mm
FE-140 series DDR Direct Drive Motor Catalog.pdf
OD: 140mm|Height: 50~80mm optional

Application case

Torque motors for robotics applications

Torque motors for consumer electronics application

Torque Motors for industrial automation application

Torque motors for medical devices application

FI-120 series housed direct dr

FI-140 series DDR torque motor

Leave Your Message

Model	OD(mm)	ID(mm)	Height(mm)	Rated Torque(Nm)	Rated Power(W)	Rated Speed(rpm)
U25 Series	25	11.6	10.8~23.4	0.025~0.075	10.48~31.44	4000
U38 Series	38	18	15.3~34.3	0.1~0.35	31.4~110.0	3000
U50 Series	50	28	19.8~37.9	0.27~0.7	84.89~220.08	3000
U60 Series	60	33	17.7~35.8	0.45~0.96	141.48~301.82	3000
U68 Series	68	37	18.3~36.4	0.63~1.54	198.07~484.18	3000
U76 Series	76	42	18.6~36.7	0.89~2.06	279.82~647.66	3000
U85 Series	85	47	19.3~37.4	1.21~2.69	380.42~845.74	3000
U94 Series	94	51	19.7~37.8	1.58~3.67	496.75~576.92	1500~3000
U115 Series	115	65	26.3~44.4	3~6.1	943.2~958.92	1500~3000
U130 Series	130	84	25.9~60.9	5~18	419.2~754.56	400~800
U160 Series	160	106	25.9~60.9	9~32	471.6~670.72	200~500
U200 Series	200	140	25.9~60.9	13~50	408.72~524	100~300

Mode	OD(mm)	ID(mm)	Height(mm)	Rated Torque(Nm)	Rated Power(W)	Rated Speed(rpm)	Voltage(V)
FI-40 Series	40	6.5	48~65	0.25	7.9	300	220
FI-60 Series	60	15	60~80	0.5	15.7	300	220
FE-80 Series	80	15	47~67	1	21	200	220
FI-80 Series	80	12	50	0.9	28.3	300	220
FE-112 Series	112	19	65~95	3	62.9	200	220
FI-120 Series	120	42	64	2.4	37.7	150	220
FE-140 Series	140	30	50~80	6	188.6	300	220
FI-140 Series	140	28	85~188	10.5	220.1	200	220
FE-170 Series	170	42	50~155	4.5	117.9	250	220
FI-170 Series	170	50	50~100	5.4	141.5	250	220
FI-180 Series	180	50	55~125	14	220.1	150	220
FI-220 Series	220	30	123~208	50.6	530.3	100	220
FE-224 Series	224	50	42~62	14.1	295.5	200	220
FI-224 Series	224	50	42	9.9	155.6	150	220
FE-263 Series	263	88	113~188	95	796.5	80	220
FI-280 Series	280	60	95~145	45	565.9	120	220
FI-300 Series	300	150	75	35	330.1	90	220
FI-375 Series	375	88	150~200	200	1257.6	60	220
