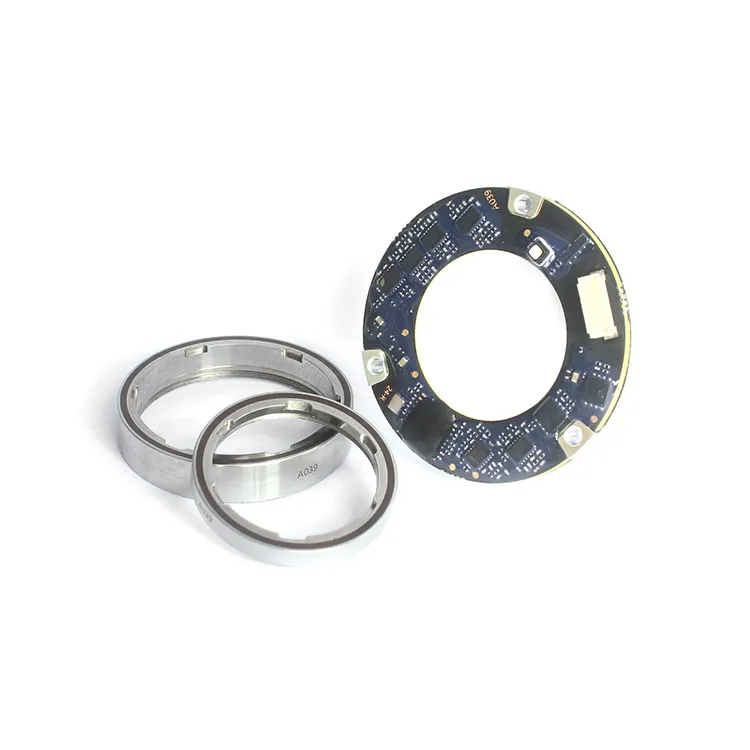

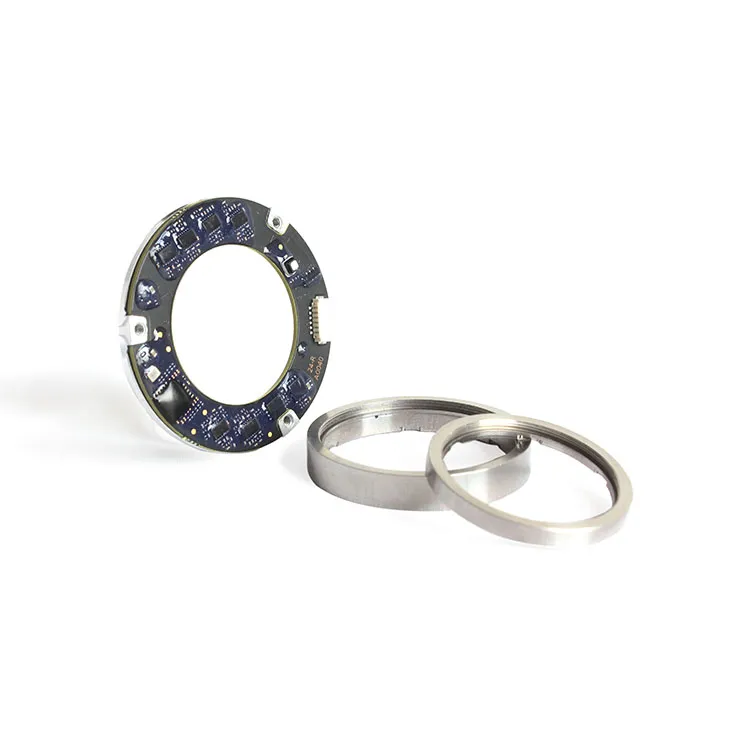

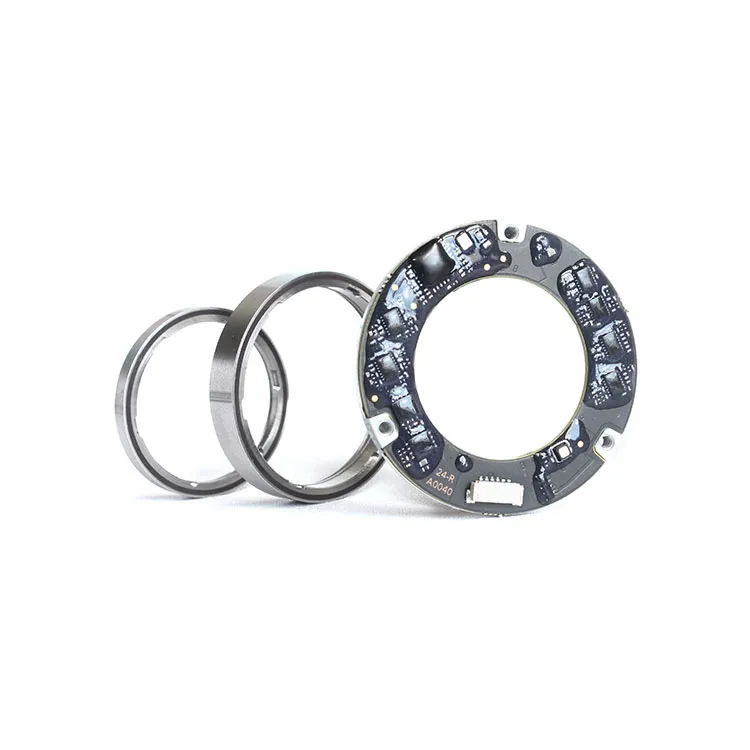

T-Series Magnetic Dual EncoderWorld's most compact, Dual 24-bit high-resolution, ±0.01° accuracy

T series magnetic dual encoder is specially designed for robot-integrated joints. It uses Mosrac motor pattern magnetic technology to measure two axes within a limited volume achieving photoelectric-like resolution and accuracy and has high resistance to environmental interference.

Request Quote

Download Catalog

Comparison Table of T Series Magnetic Dual Encoder

T-series magnetic dual encoders manufactured by Mosrac is specially designed for robot-integrated joints, with various size options tailored to different application needs.

Series	Mode	Inner rotor Thread	Inner rotormatch ID (H7)	Outer rotor Thread	Outer rotormatch ID (H7)	Statormatch ID (H7)
10-15-25	T-10-15-25	M10x0.4mm	9	M15x0.4mm	14	25
15-20-30	T-15-20-30	M15x0.4mm	14	M20x0.4mm	19	30
20-25-35	T-20-25-35	M20x0.4mm	19	M25x0.4mm	24	35
25-30-40	T-25-30-40	M25x0.4mm	24	M30x0.4mm	29	40
30-35-45	T-30-35-45	M30x0.4mm	29	M35x0.4mm	34	45

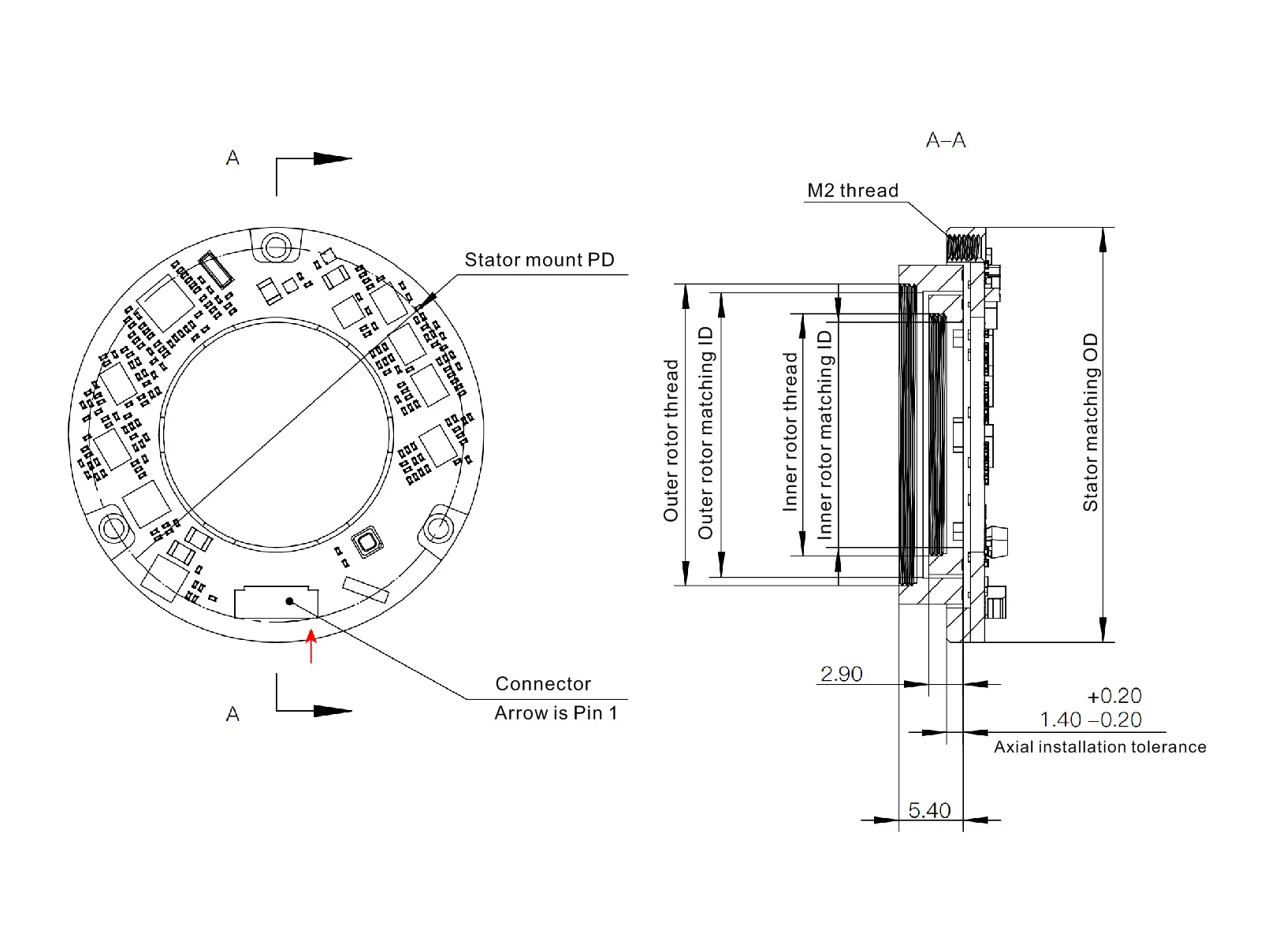

Drawing

When installing the stator, can use an M1.6 screw to pass through the M2 threaded hole or can use an M2 thread

with an M2 screw to lock it.When installing the rotor use a special tool to tighten it.

Part no. description

Addition
M- no addition

Operating temperature
A – -40 ~ 85 °C
B – -40 ~ 105 °C
C – -40 ~ 125 °C

Input voltage
N – 5V

Output interface
R – RS485
B – BISS-C

Outer encoder output parameter
24-24 bits

Inner encoder output parameter
24-24 bits

Output type
A- absolute

Stator OD
Refer to Size

Outer rotor ID
Refer to Size

Inner rotor ID
Refer to Size

Download

Mosrac-T Series Magnetic Dual Encoder Data Sheet.pdf
T-10-15-25.STEP

Inner rotor Thread: M10x0.4mm|Outer rotor Thread: M15x0.4mm
T-15-20-30.STEP

Inner rotor Thread: M15x0.4mm|Outer rotor Thread: M20x0.4mm
T-20-25-35.STEP

Inner rotor Thread: M20x0.4mm|Outer rotor Thread: M25x0.4mm
T-25-30-40.STEP

Inner rotor Thread: M25x0.4mm|Outer rotor Thread: M30x0.4mm
T-30-35-45.STEP

Inner rotor Thread: M30x0.4mm|Outer rotor Thread: M35x0.4mm

Parameters

System
Installation method	Axial hollow
Resolution	24bit
Accuracy	±0.01°
Electrical
Power supply	4.5 ~ 5.5 V
Start-up time	15 ms
Connection method	Wire-to-board connector
Current	≈ 130 mA
ESD resistance	HBM，max. ±2 kV CDM，max. ±1 kV
Mechanical
Magnetic ring bracket	Stainless steel
Environmental
Operating temperature	-40 ~ 85 °C / -40 ~ 105 °C / -40 ~ 125 °C
