S-series magnetic encoder17-bit high-resolution | ±0.05° accuracy | Arbitrary hollow

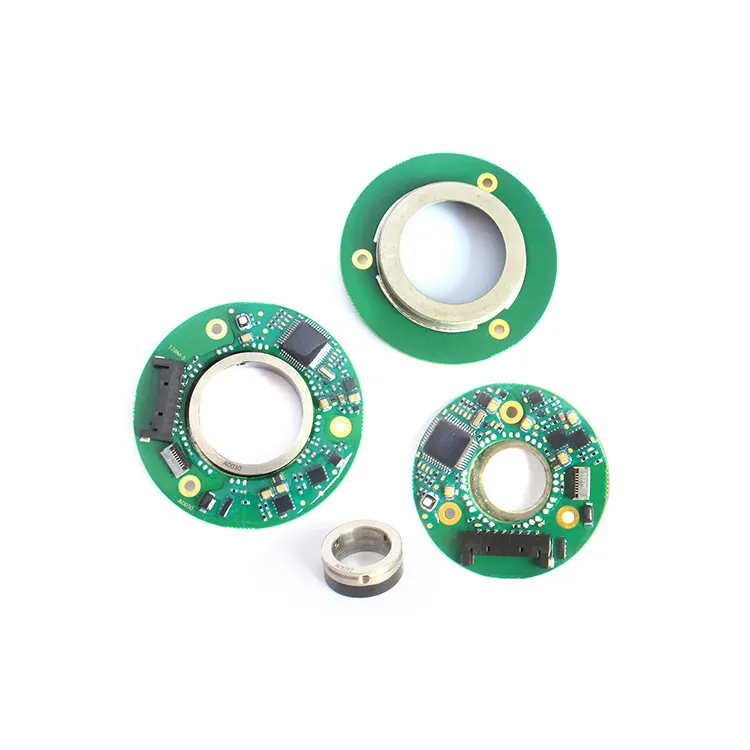

Mosrac S-series magnetic encoder is an ultra-thin absolute encoder with multiple output formats and strong anti-electromagnetic interference capabilities. Various sizes are available, suitablefor applications requiring high output accuracy and limited space.

Request Quote

Download Catalog

Available S-series Magnetic Encoder Solutions

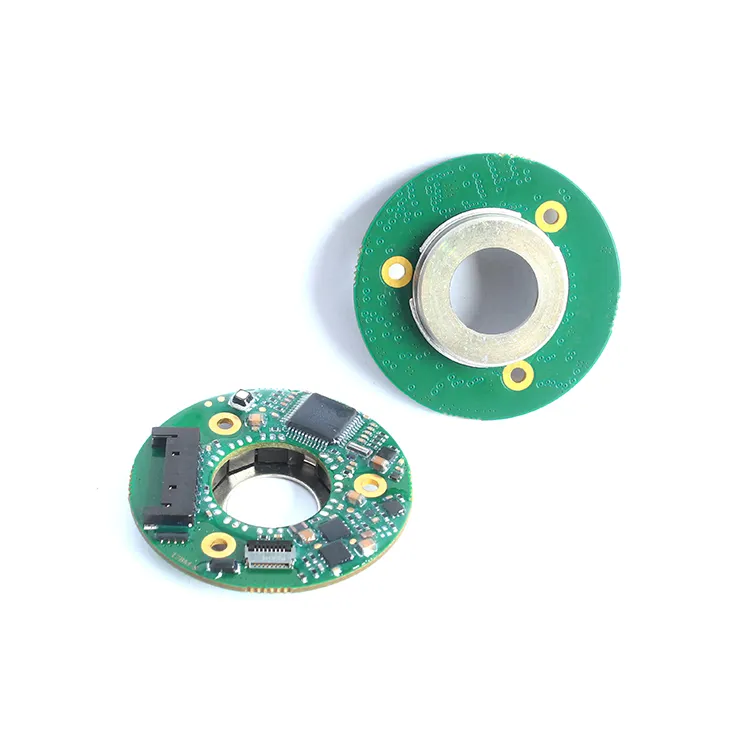

Standard Style

Find The Right Encoders

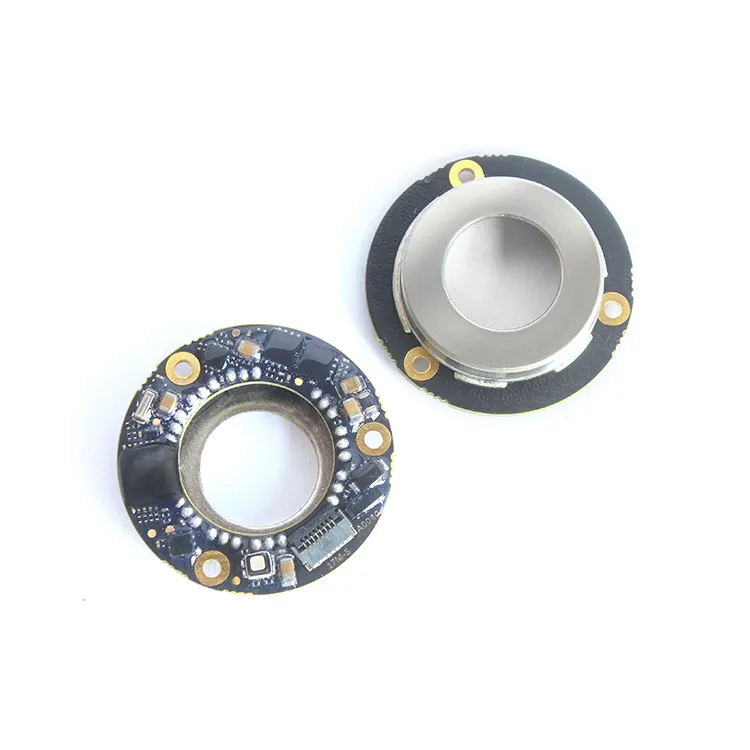

Compact Style

Find The Right Encoders

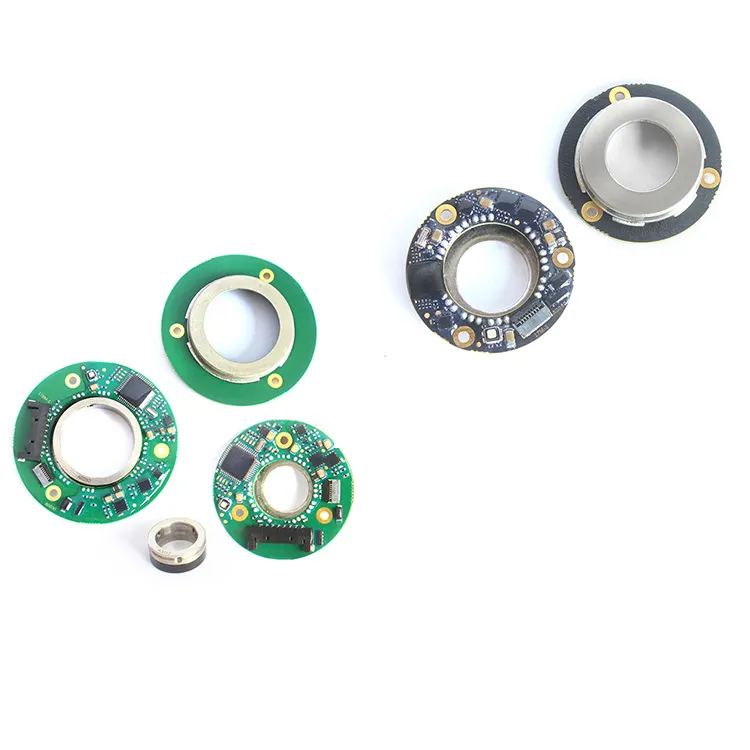

Custom Encoders

Contact our experts

Comparison Table of S-series Magnetic Encoders

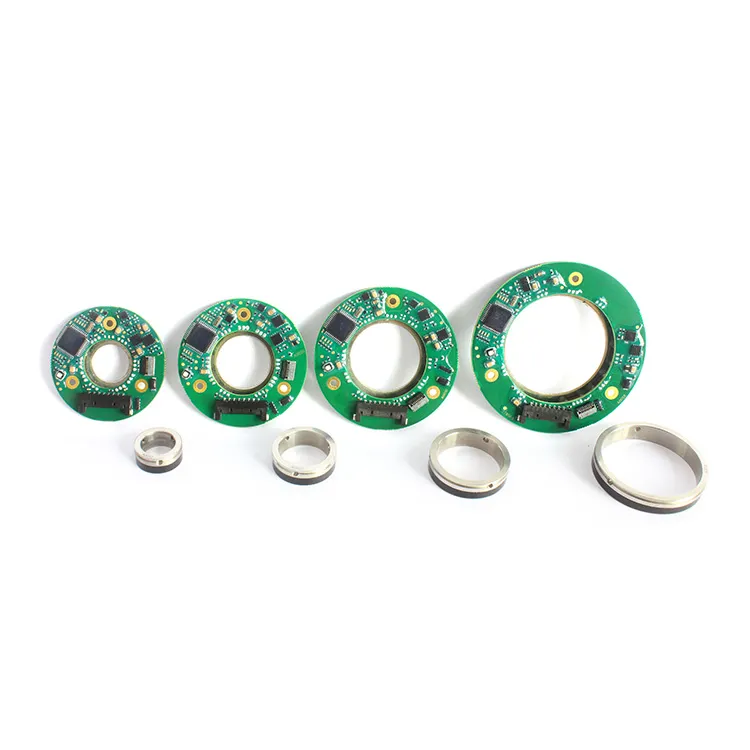

S-series magnetic encoders manufactured by Mosrac include including standard & compact styles, with various size options tailored to different application needs.

standard

Series	Types	Size	RotorID	StatorOD	Stator installation pitch circle	Stator shieldOD	ConnectorWire to board	ConnectorFPC	Overall thickness
10	Standard	S-8-36 S-10-36	8 10	36	25	20	√	√	7
15	Standard	S-12-40 S-13-40 S-15-40	12 13 15	40	30	25	√	√	7
20	Standard	S-6-45 S-8-45 S-10-45 S-15-45 S-18-45 S-20-45	6 8 10 15 18 20	45	36	30	√	√	7
25	Standard	S-23-50 S-25-50	23 25	50	40	35	√	√	7
30	Standard	S-28-55 S-30-55	28 30	55	45	40	√	√	7
35	Standard	S-33-60 S-35-60	33 35	60	50	45	√	√	7
40	Standard	S-38-65 S-40-65	38 40	65	55	50	√	√	7
45	Standard	S-43-70 S-45-70	43 45	70	60	55	√	√	7
50	Standard	S-48-75 S-50-75	48 50	75	65	60	√	√	7
55	Standard	S-53-80 S-55-80	53 55	80	70	65	√	√	7

Compact

Series	Types	Size	RotorID	StatorOD	Stator installation pitch circle	Stator shieldOD	ConnectorWire to board	ConnectorFPC	Overall thickness
10	Compact	S-8-27 S-10-27	8 10	27	23	20	—	√	7
15	Compact	S-12-32 S-13-32 S-15-32	12 13 15	32	28	25	—	√	7
20	Compact	S-18-37 S-20-37	18 20	37	33	30	—	√	7
25	Compact	S-23-42 S-25-42	23 25	42	38	35	—	√	7
30	Compact	S-28-47 S-30-47	28 30	47	43	40	—	√	7
35	Compact	S-33-52 S-35-52	33 35	52	48	45	—	√	7
40	Compact	S-38-57 S-40-57	38 40	57	53	50	—	√	7
45	Compact	S-43-62 S-45-62	43 45	62	58	55	—	√	7
50	Compact	S-48-67 S-50-67	48 50	67	63	60	—	√	7
55	Compact	S-53-72 S-55-72	53 55	72	68	65	—	√	7

Drawing

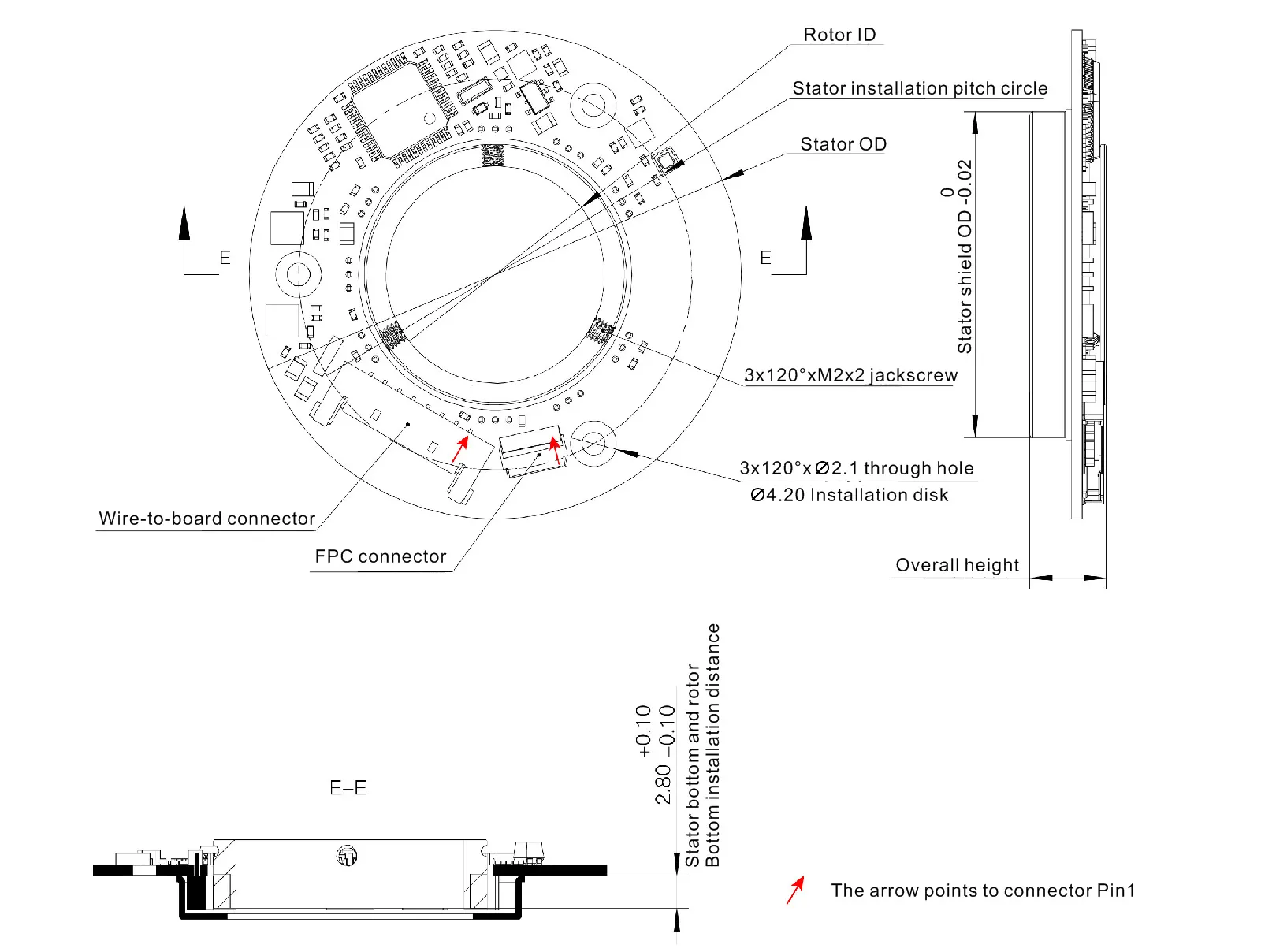

standard

The drawings include standard stators and rotors of this series.

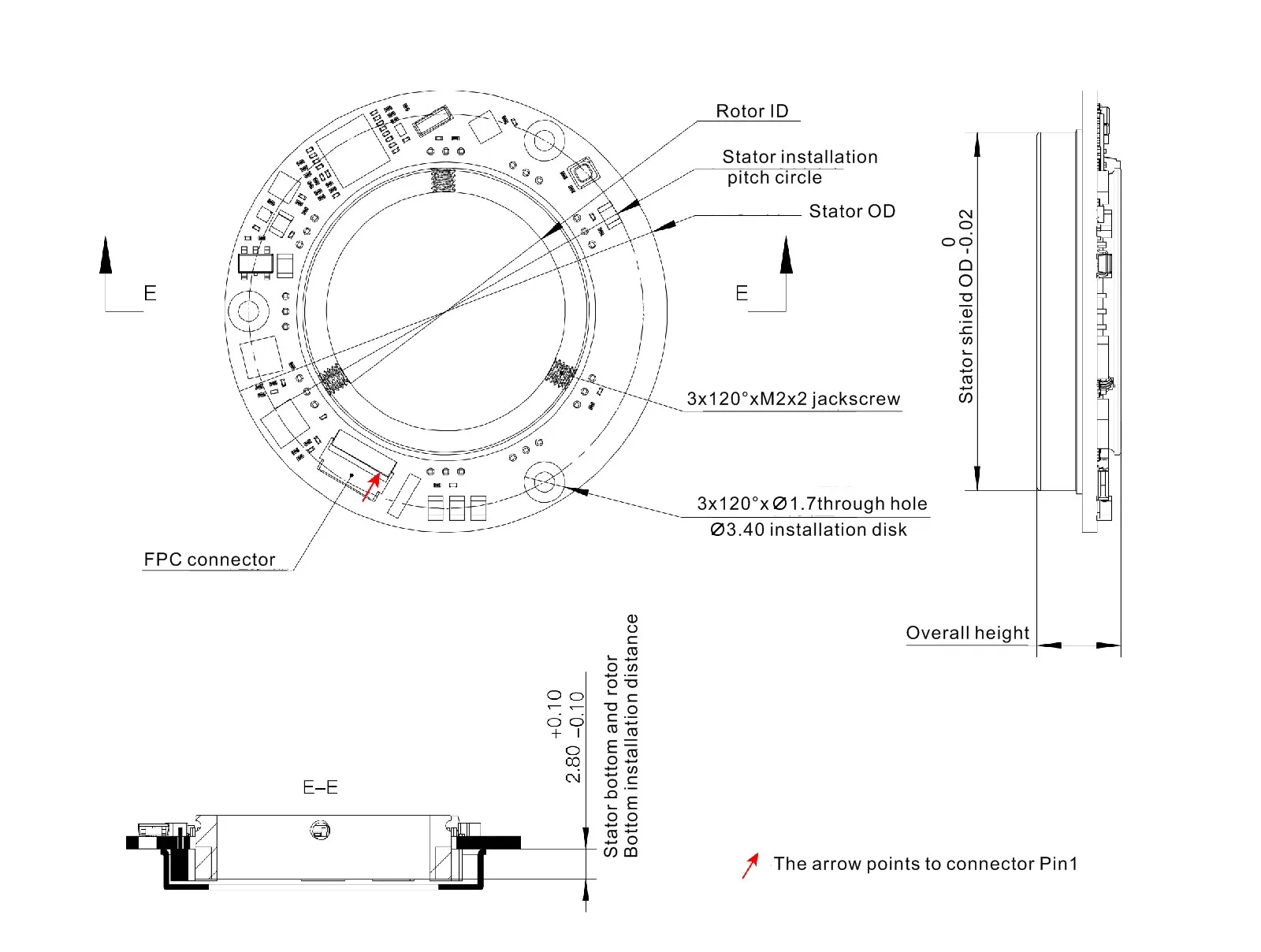

compact

The drawings include compact stators and rotors from this series.

Part no. description

Additional
M – no additional
Baud rate – when the
interface is R or A
PC – FPC lower pad

Working temperature
A–-40 ~ 85°C
B–-40 ~ 105°C
C–-40 ~ 125°C

Input voltage
N –5V

Output Interface
S-SSI(1)
BS-BISS-C Standard(2)
R-RS485
A-RS422
T –T485 (Tamagawa compatible)(3)
D-BUS (high-speed bus)
P–PERIOD (periodic transmission)
B–BISS-C [non-standard
not recommended for new products]

Output parameters
16 –16-bit single-turn
17 –17-bit single-turn
16M – 16-bit single-turn + multi-turn
17M – 17-bit single lap + multi lap
16BM – 16-bit single-turn + battery multi-turn
17BM – 17-bit single-turn + battery multi-turn

Output type
A – absolute value

Stator OD
Please check the dimensions for details

Rotor ID
Please check the dimensions for details

(1) The SSI protocol haven't CRC check. Recommend to use BISS-C Standard with the same hardware instead to improve reliability.

(2) The BS protocol uses the completely standard BISS-C protocol format.

(3) The T485 protocol optional output parameters are 17M or 17BM.

(4) The ordinary multi-turn's multi-turn data is only valid when the power is turned on. Counting starts from zero after the power isturned off and then on again.

Download

Mosrac's S series Magnetic Encoder Data Sheet.pdf
Compact S-8-27.STEP

Stator shield OD: 20|Thickness: 7
Standard S-8-36.STEP

Stator shield OD: 20|Thickness: 7
Standard S-8-45.STEP

Stator shield OD: 30|Thickness: 7
Compact S-10-27.STEP

Stator shield OD: 20|Thickness: 7
Standard S-10-36.STEP

Stator shield OD: 20|Thickness: 7
Standard S-10-45.STEP

Stator shield OD: 30|Thickness: 7
Compact S-12-32.STEP

Stator shield OD: 30|Thickness: 7
Standard S-12-40.STEP

Stator shield OD: 25|Thickness: 7
Compact S-13-32.STEP

Stator shield OD: 25|Thickness: 7
Standard S-13-40.STEP

Stator shield OD: 25|Thickness: 7
Compact S-15-32.STEP

Stator shield OD: 25|Thickness: 7
Standard S-15-40.STEP

Stator shield OD: 25|Thickness: 7
Standard S-15-45.STEP

Stator shield OD: 30|Thickness: 7
Compact S-18-37.STEP

Stator shield OD: 30|Thickness: 7
Standard S-18-45.STEP

Stator shield OD: 30|Thickness: 7
Compact S-20-37.STEP

Stator shield OD: 30|Thickness: 7
Standard S-20-45.STEP

Stator shield OD: 30|Thickness: 7
Compact S-23-42.STEP

Stator shield OD: 35|Thickness: 7
Standard S-23-50.STEP

Stator shield OD: 35|Thickness: 7
Compact S-25-42.STEP

Stator shield OD: 35|Thickness: 7
Standard S-25-50.STEP

Stator shield OD: 35|Thickness: 7
Compact S-28-47.STEP

Stator shield OD: 40|Thickness: 7
Standard S-28-55.STEP

Stator shield OD: 40|Thickness: 7
Compact S-30-47.STEP

Stator shield OD: 40|Thickness: 7
Standard S-30-55.STEP

Stator shield OD: 40|Thickness: 7
Compact S-33-52.STEP

Stator shield OD: 45|Thickness: 7
Standard S-33-60.STEP

Stator shield OD: 45|Thickness: 7
Compact S-35-52.STEP

Stator shield OD: 45|Thickness: 7
Standard S-35-60.STEP

Stator shield OD: 45|Thickness: 7
Compact S-38-57.STEP

Stator shield OD: 50|Thickness: 7
Standard S-38-65.STEP

Stator shield OD: 50|Thickness: 7
Compact S-40-57.STEP

Stator shield OD: 50|Thickness: 7
Standard S-40-65.STEP

Stator shield OD: 50|Thickness: 7
Compact S-43-62.STEP

Stator shield OD: 55|Thickness: 7
Standard S-43-70.STEP

Stator shield OD: 55|Thickness: 7
Compact S-45-62.STEP

Stator shield OD: 55|Thickness: 7
Standard S-45-70.STEP

Stator shield OD: 55|Thickness: 7
Compact S-48-67.STEP

Stator shield OD: 60|Thickness: 7
Standard S-48-75.STEP

Stator shield OD: 60|Thickness: 7
Compact S-50-67.STEP

Stator shield OD: 60|Thickness: 7
Standard S-50-75.STEP

Stator shield OD: 60|Thickness: 7
Compact S-53-72.STEP

Stator shield OD: 65|Thickness: 7
Standard S-53-80.STEP

Stator shield OD: 65|Thickness: 7
Standard S-55-80.STEP

Stator shield OD: 65|Thickness: 7

Parameters

System
Installation method	Axial hollow
Accuracy	±0.05°
Temperature drift	±0.01°/3 °C
Electrical
Power supply	4.5 ~ 5.5 V
Battery	2.7 ~ 3.6 V
Startup time	15 ms
Connection	Wire to board connector MOLEX 504050/FPC connector FH34SRJ-8S-0.5SH/Soldering Pad
Current	≈ 60 mA
Update frequency	27 kHz
Battery mode current	≈ 35μA (battery voltage 3.6V in 6000rpm low power detection mode see Battery features for details)
ESD resistance	HBM max. ±2 kV CDM max. ±1 kV
Mechanical
Rotor material Environmental	Stainless steel Aluminum alloy(S-6-45/MBS-8-45/S-10-45/S-12-45)
Operating temperature	-40 ~ 85 °C / -40 ~ 105 °C / -40 ~ 125 °C
