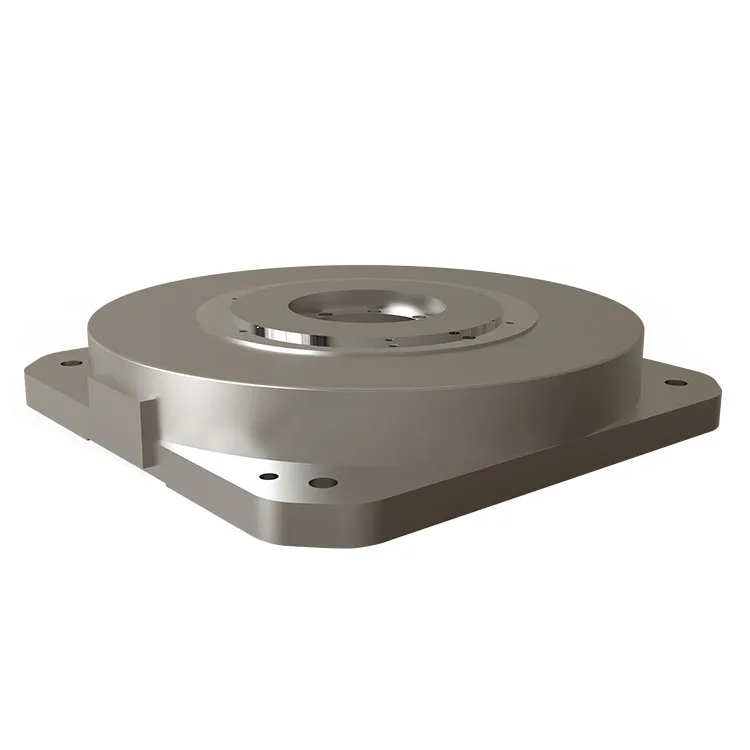

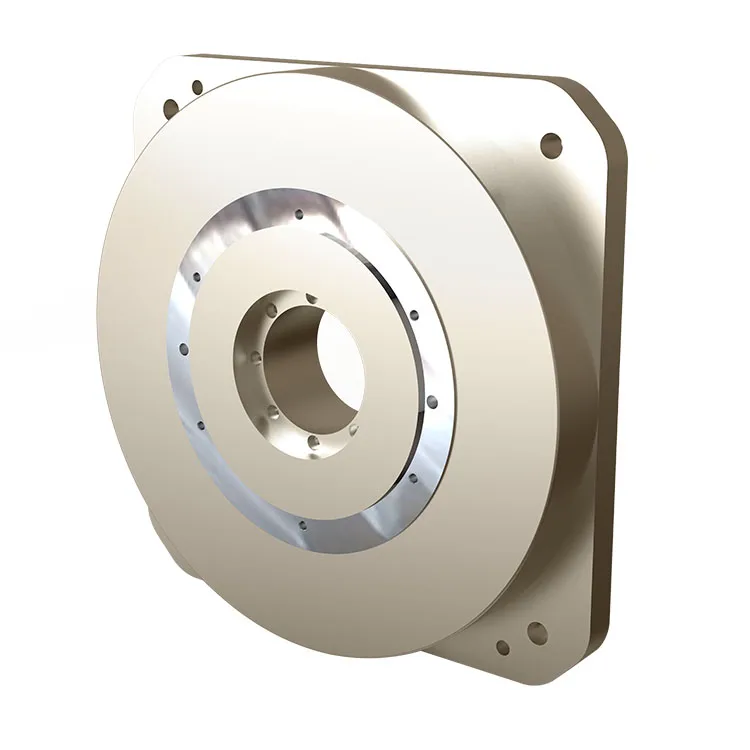

Specification
| Main Parameters | FI-22442 | |
| Voltage(VAC) | 220 | |
| Rated torque(Nm) | 9.9 | |
| Instant Max Torque(Nm) | 30 | |
| Torque constant(Nm/Arms) | 4.3 | |
| Rated Current(Arms) | 2.3 | |
| Instant Max Current(Arms) | 7 | |
| Resistance(Ω) | 22.5 | |
| Inductance(mH) | 50.4 | |
| Pole-pairs number(2P) | 20 | |
| Back EMF coefficient(Vrims/rad/s) | 3.5 | |
| Rated Output(W) | 155.6 | |
| Rotor inertia (10-4kg.m²) | 72 | |
| Rated Speed(rpm) | 150 | |
| Max Speed(rpm) | 250 | |
| Positioning accuracy(arc_sec) | ±20 | |
| Repeat positioning accuracy(arc_sec) | ±1.5 | |
| Encoder resolution(sin/cos) | 11740 | |
| Axial load(N) | 2500 | |
| Radial load(N.m) | 50 | |
| Axial runout(mm) | ≤0.005 | |
| Radial runout(mm) | ≤0.005 | |
| Weight(kg) | 6.3 | |
| Motor height(mm) | 42 | |

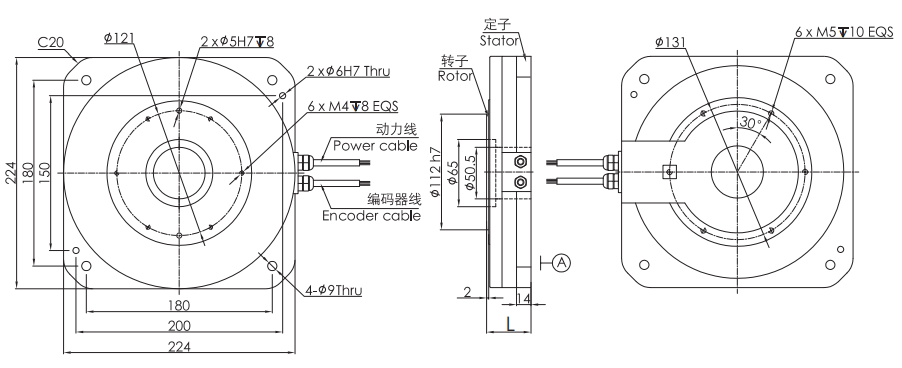

Drawing
Download
FI-22442 Torque Motor Catalog.pdf
OD: 224mm|Height: 42mm
Frequently bought together - Magnetic encoders
Direct drives need high-quality position signals to ensure optimal performance. Perfect measuring signals can enhance the surface quality of machined workpieces, reduce the machine frame's vibrations, minimize velocity-dependent motor noise, and prevent excessive heat generation in the motor.
Mosrac recommends using a magnetic encoder to enhance the accuracy, speed stability, and thermal behavior of direct drive axes. Because there is no mechanical transmission between the encoder and the feed unit, the position signals are not susceptible to inaccuracies or delays.
Custom combinations are available on request and contact us.
