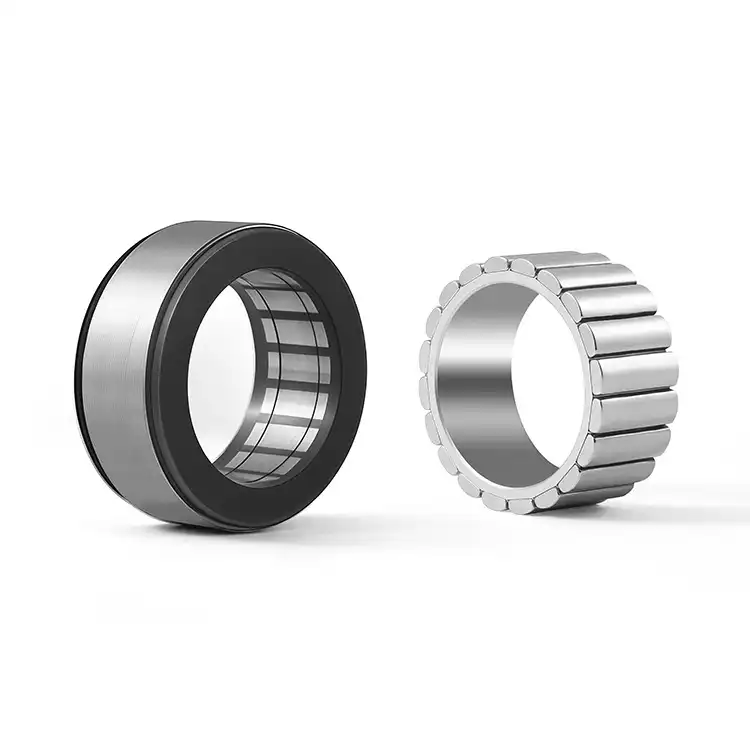

u94 series frameless torque motor 3d rendering

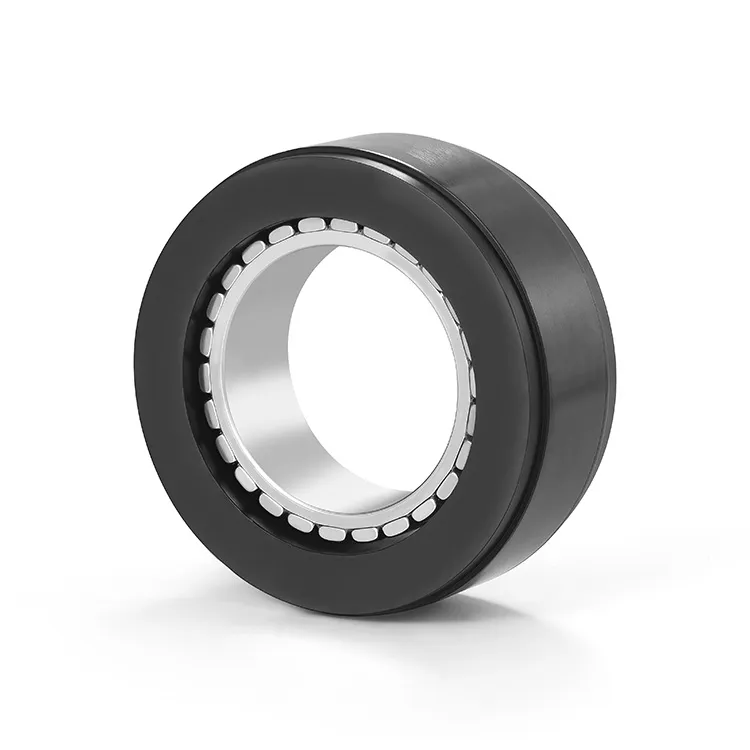

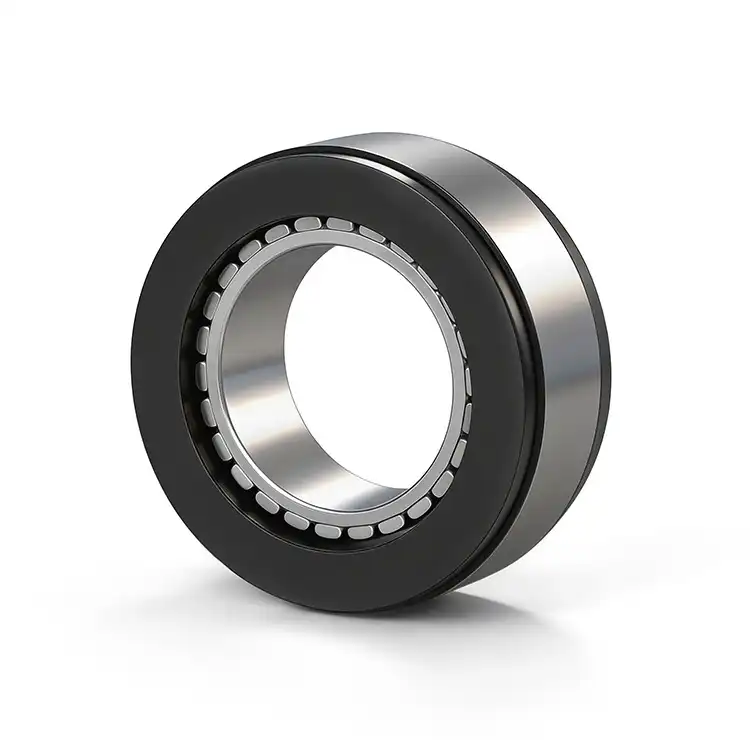

U94 Series Frameless Inrunner Torque MotorOuter diameter ( OD ) : 94mm

This frameless torque motor with a 94mm outer diameter. Available rated torque from 1.58Nm, 2.05Nm to 3.67Nm and optional height, and highly customizable options.

Download Catalog

Download 3D Model

Request Quote

Specification

Main Parameters		U9419	U9424	U9437
Voltage(VDC)		48	48	48
Rated Output(W)		497	644	577
Rated torque(Nm)		1.58	2.05	3.67
Instant Max Torque(Nm)		4	5.02	9
Rated Current(Arms)		12	16	24
Instant Max Current(Arms)		36	66	72
Rated Speed(rpm)		3000	3000	3000
MaxSpeed(rpm)		5000	4000	3000
Torque Parameter(Nm/Arms)		0.13	0.13	0.15
Rotor inertia 10^-4kg.m²		0.86	1.15	1.9
Back EMF coefficient(Vrims/rad/s)		8	9	18
Resistance(Ω)		0.15	0.12	0.08
Inductance(mH)		0.35	0.26	0.32
Pole-pairs number(2P)		10	10	10
Weight(kg)		0.382	0.522	0.93
Motor height(mm)	L1	11	15.5	28
	L2	10	14.5	27
	L3	19.7	24.2	37.8

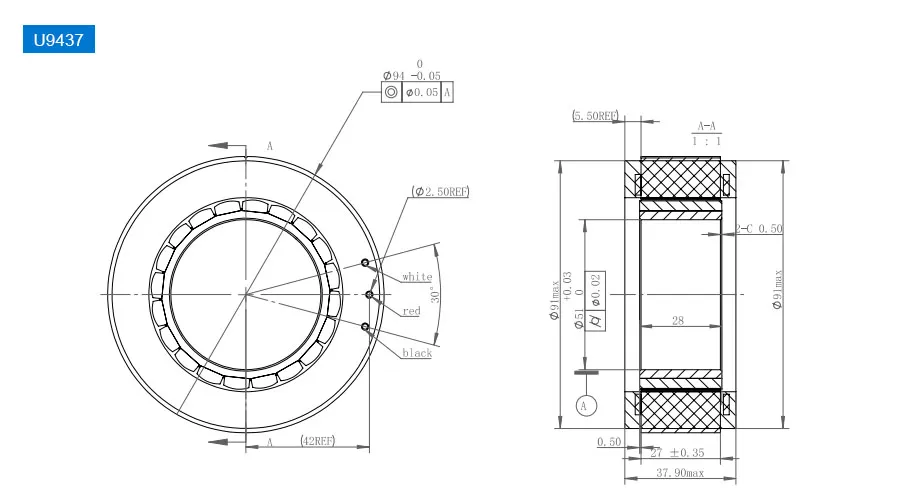

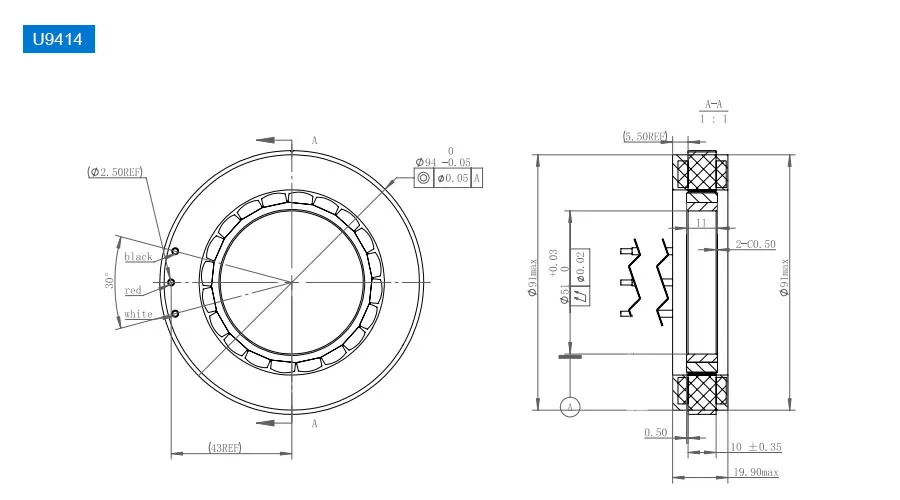

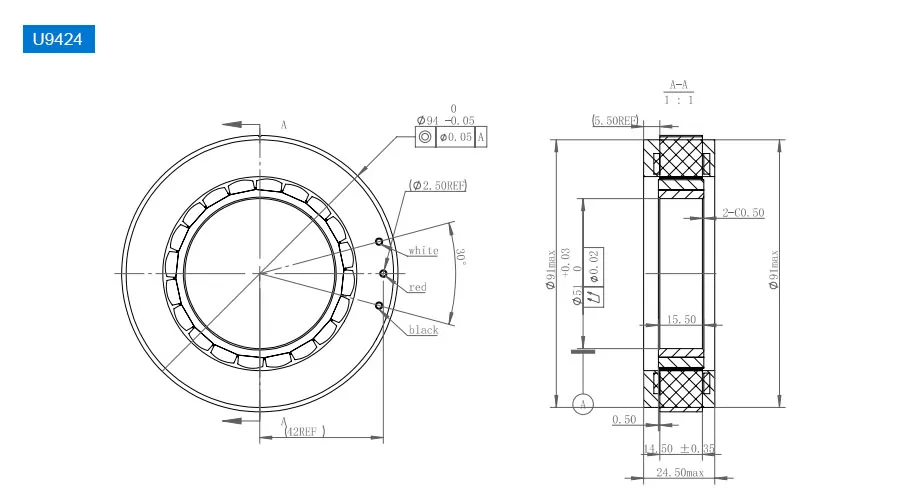

Drawing

Download

U9419 Torque Motor Catalog.pdf
OD: 94mm|Height: 19.7mm
U9424 Torque Motor Catalog.pdf
OD: 94mm|Height: 24.2mm
U9437 Torque Motor Catalog.pdf
OD: 94mm|Height: 37.8mm
U94 Series Frameless Inrunner Torque Motor Catalog.pdf
OD: 94mm|Height: 19.7~24.2~37.8mm optional
U9419 Torque Motor 3D Model.stp
OD: 94mm|Height: 19.7mm
U9424 Torque Motor 3D Model.stp
OD: 94mm|Height: 24.2mm
U9437 Torque Motor 3D Model.stp
OD: 94mm|Height: 37.8mm
