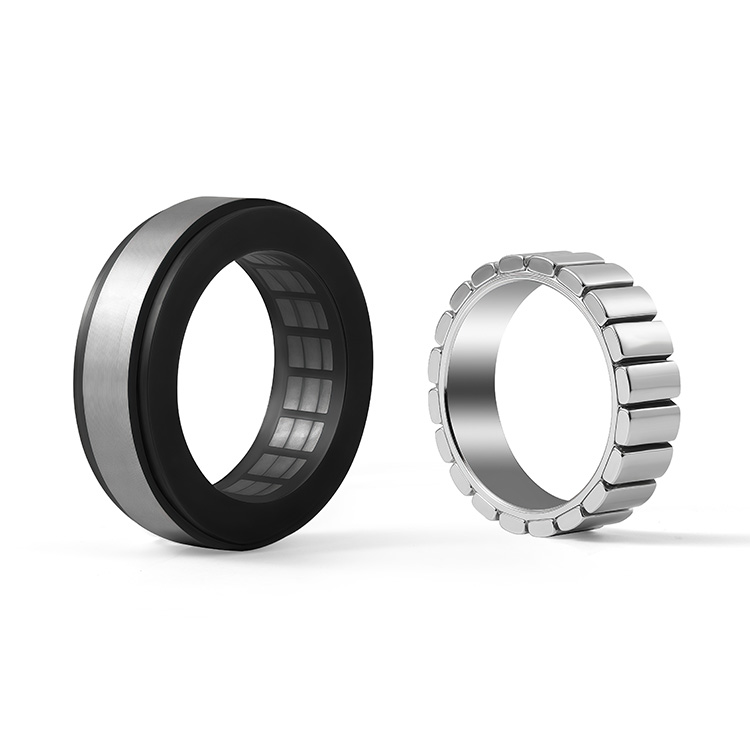

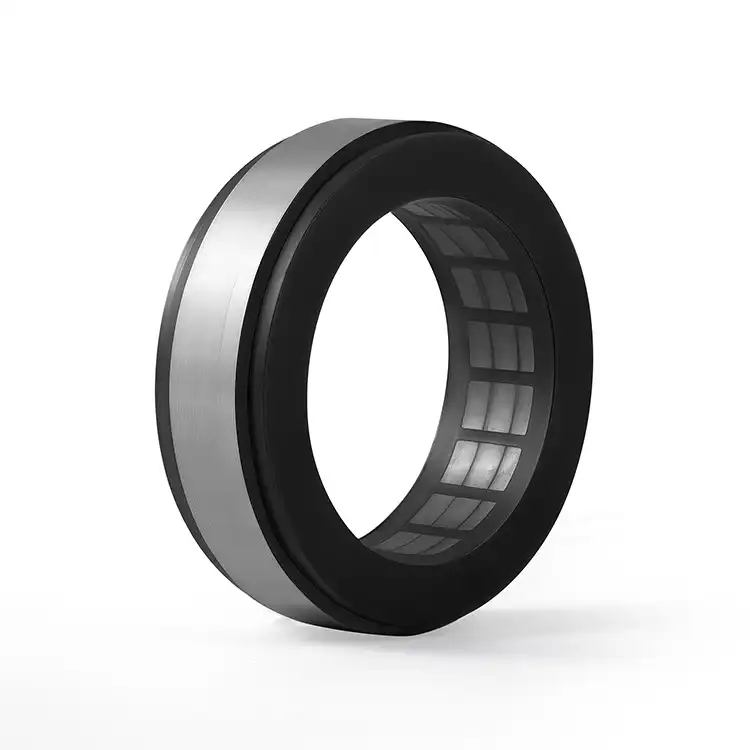

U85 Series Frameless Brushless MotorOuter diameter ( OD ) : 85mm

This frameless brushless motor, with an 85mm outer diameter and 47mm aperture, mounts on a 47mm shaft to directly drive robot joints. Available optional rated torque, and customizable options.

Download Catalog

Download 3D Model

Request Quote

Specification

Main Parameters		U8519	U8523	U8537
Voltage(VDC)		48	48	48
Rated Output(W)		380	519	846
Rated torque(Nm)		1.21	1.65	2.69
Instant Max Torque(Nm)		3.17	4.45	6
Rated Current(Arms)		6	12	17
Instant Max Current(Arms)		18	36	50
Rated Speed(rpm)		3000	3000	3000
MaxSpeed(rpm)		6000	6000	4000
Torque Parameter(Nm/Arms)		0.2	0.14	0.16
Rotor inertia 10^-4kg.m²		0.59	0.77	1.27
Back EMF coefficient(Vrims/rad/s)		7	7	10
Resistance(Ω)		0.8	0.2	0.1
Inductance(mH)		1.1	0.36	0.22
Pole-pairs number(2P)		10	10	10
Weight(kg)		0.306	0.414	0.736
Motor height(mm)	L1	11	15.5	28.5
	L2	10.5	15	28
	L3	19.3	23.8	37.4

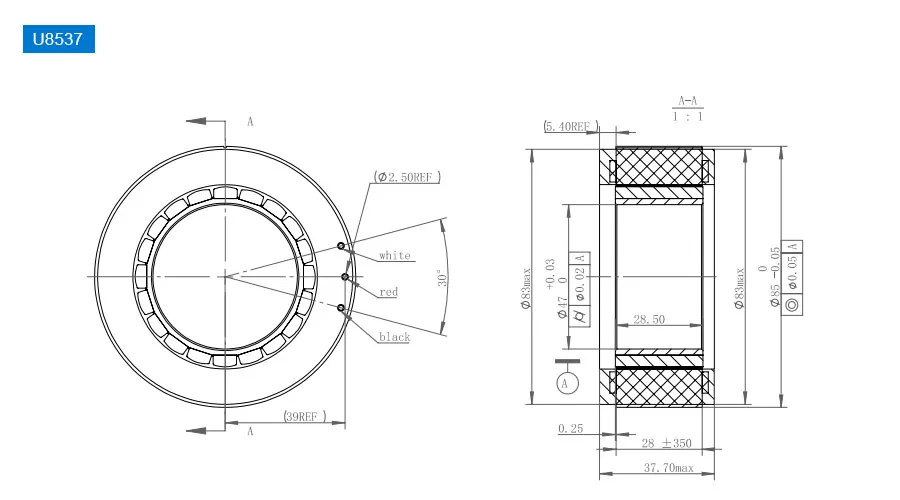

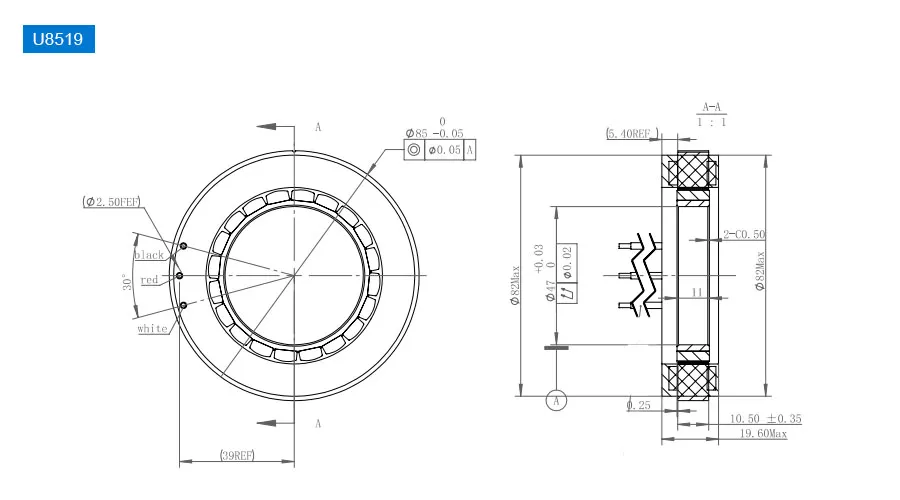

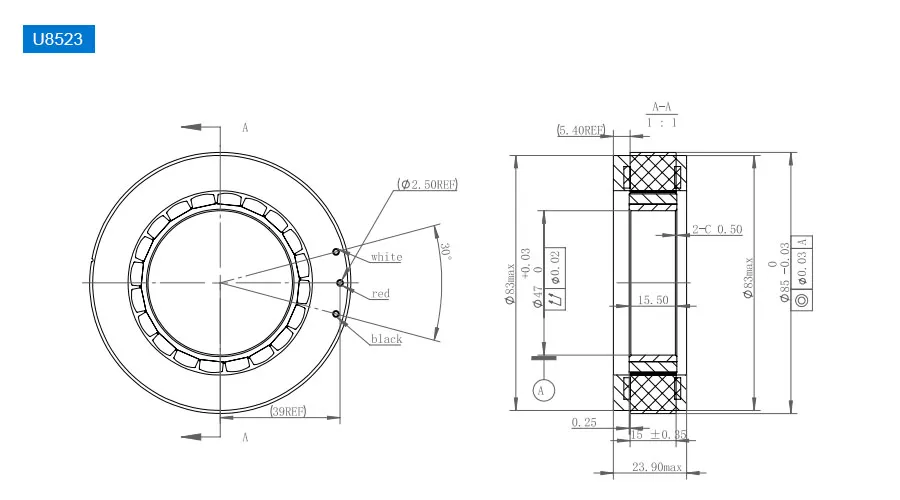

Drawing

Download

U8519 Torque Motor Catalog.pdf
OD: 85mm|Height: 19.3mm
U8523 Torque Motor Catalog.pdf
OD: 85mm|Height: 23.8mm
U8537 Torque Motor Catalog.pdf
OD: 85mm|Height: 37.4mm
U85 Series Frameless Brushless Motor Catalog.pdf
OD: 85mm|Height: 19.3~23.8~37.4mm optional
U8519 Torque Motor 3D Model.stp
OD: 85mm|Height: 19.3mm
U8523 Torque Motor 3D Model.stp
OD: 85mm|Height: 23.8mm
U8537 Torque Motor 3D Model.stp
OD: 85mm|Height: 37.4mm
