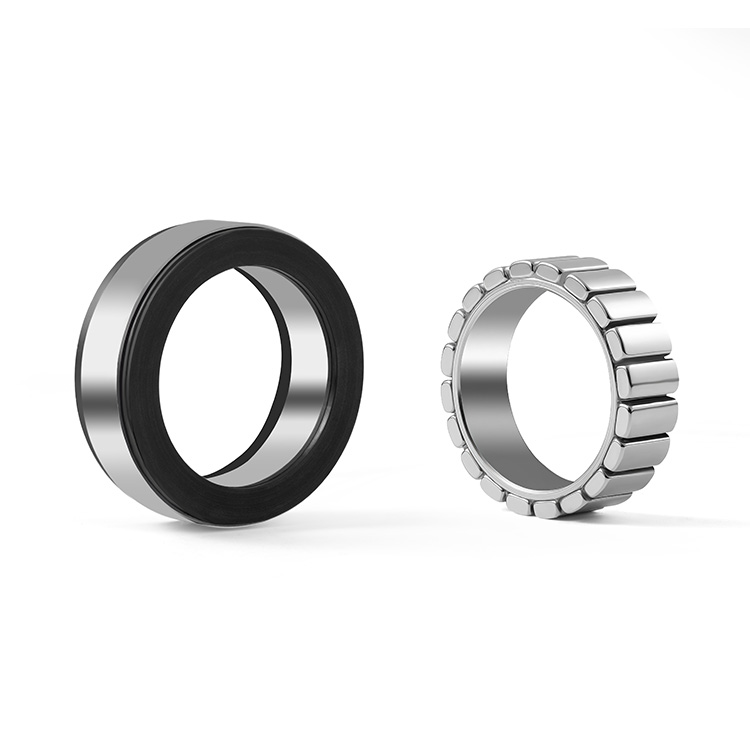

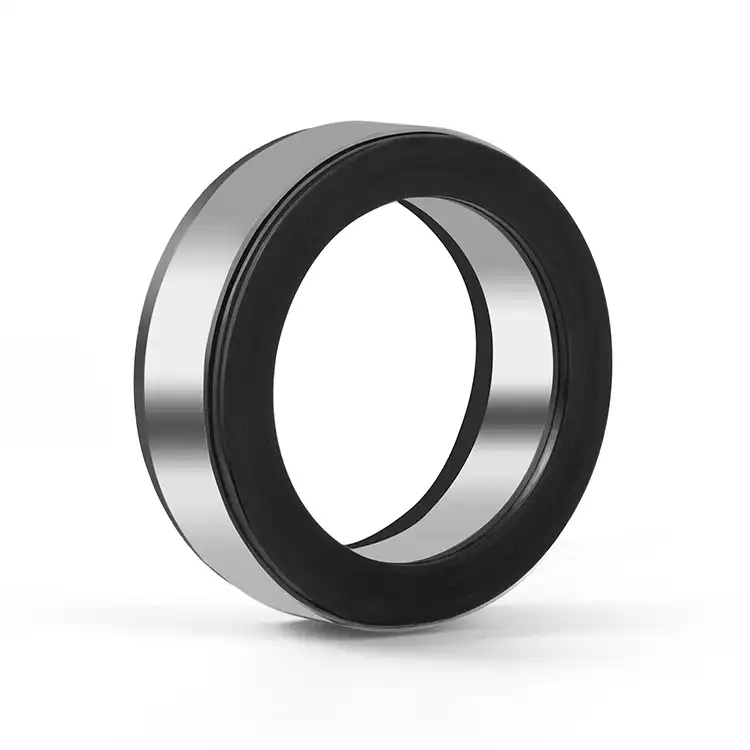

U68 Series Frameless Rotary MotorsOuter diameter ( OD ) : 68mm

This frameless rotary motors, with a 68mm outer diameter and 37mm aperture, mounts on a 37mm shaft to directly drive robot joints. Available torques: 0.63Nm, 0.86Nm, 1.54Nm, and highly customizable options.

Download Catalog

Download 3D Model

Request Quote

Specification

Main Parameters		U6818	U6822	U6836
Voltage(VDC)		48	48	48
Rated Output(W)		198	270	484
Rated torque(Nm)		0.63	0.86	1.54
Instant Max Torque(Nm)		1.54	2.14	4
Rated Current(Arms)		4.5	7	13
Instant Max Current(Arms)		13.5	21	40
Rated Speed(rpm)		3000	3000	3000
MaxSpeed(rpm)		6000	6000	5000
Torque Parameter(Nm/Arms)		0.14	0.12	0.12
Rotor inertia 10^-4kg.m²		0.24	0.31	0.52
Back EMF coefficient(Vrims/rad/s)		7	7	9
Resistance(Ω)		1.4	0.5	0.2
Inductance(mH)		1.26	0.46	0.3
Pole-pairs number(2P)		10	10	10
Weight(kg)		0.197	0.266	0.474
Motor height(mm)	L1	11	15.5	28.5
	L2	10	14.5	27.5
	L3	18.3	22.8	36.4

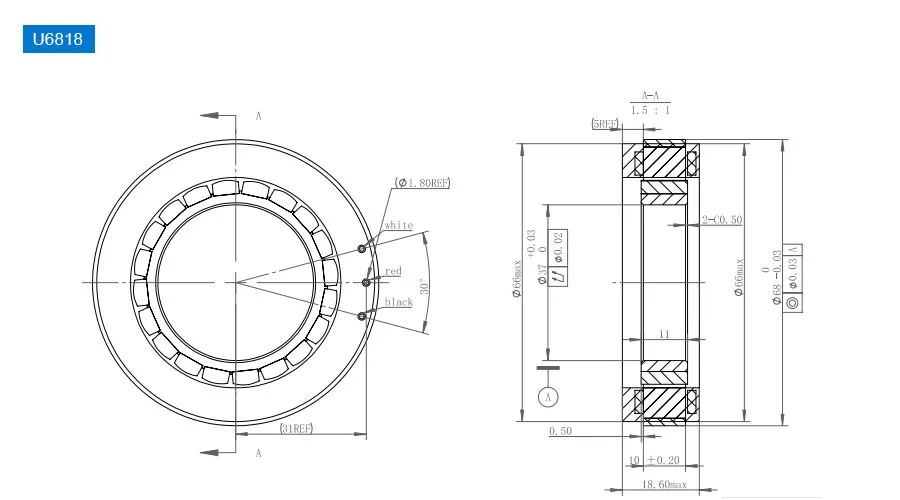

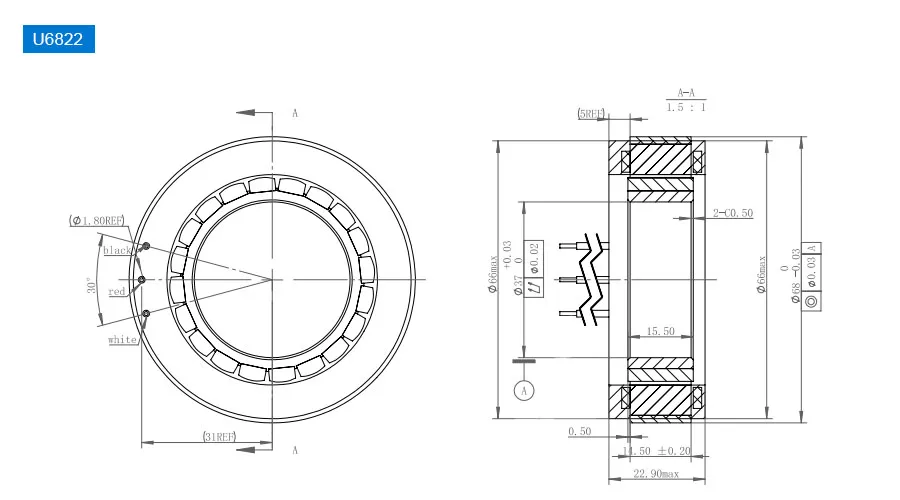

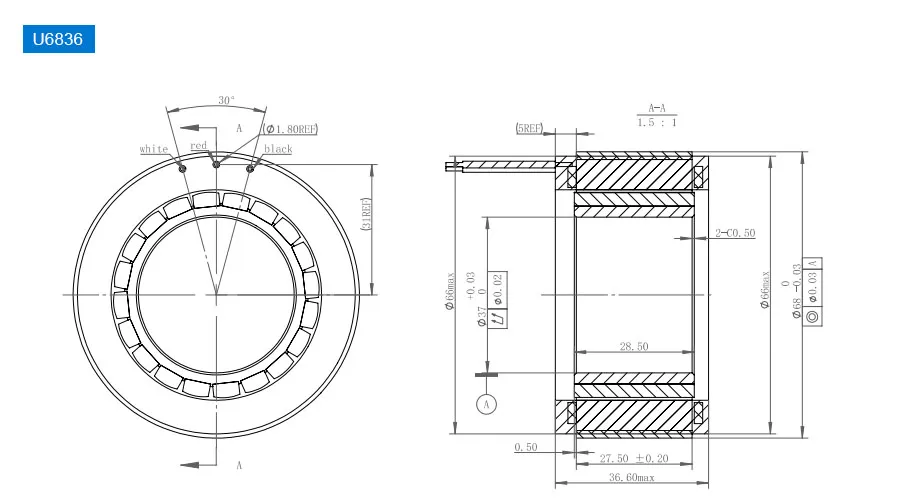

Drawing

Download

U6818 Torque Motor Catalog.pdf
OD: 68mm|Height: 18.3mm
U6822 Torque Motor Catalog.pdf
OD: 68mm|Height: 22.8mm
U6836 Torque Motor Catalog.pdf
OD: 68mm|Height: 36.4mm
U68 Series Frameless Rotary Motors Catalog.pdf
OD: 68mm|Height: 18.3~22.8~36.4mm optional
U6818 Torque Motor 3D Model.stp
OD: 68mm|Height: 18.3mm
U6822 Torque Motor 3D Model.stp
OD: 68mm|Height: 22.8mm
U6836 Torque Motor 3D Model.stp
OD: 68mm|Height: 36.4mm

Application case

Torque motors for robotics applications

Torque motors for consumer electronics application

Torque Motors for industrial automation application

Torque motors for medical devices application

U60 Series Frameless BLDC Moto

U76 Series Brushless DC Framel

Leave Your Message

Model	OD(mm)	ID(mm)	Height(mm)	Rated Torque(Nm)	Rated Power(W)	Rated Speed(rpm)
U25 Series	25	11.6	10.8~23.4	0.025~0.075	10.48~31.44	4000
U38 Series	38	18	15.3~34.3	0.1~0.35	31.4~110.0	3000
U50 Series	50	28	19.8~37.9	0.27~0.7	84.89~220.08	3000
U60 Series	60	33	17.7~35.8	0.45~0.96	141.48~301.82	3000
U68 Series	68	37	18.3~36.4	0.63~1.54	198.07~484.18	3000
U76 Series	76	42	18.6~36.7	0.89~2.06	279.82~647.66	3000
U85 Series	85	47	19.3~37.4	1.21~2.69	380.42~845.74	3000
U94 Series	94	51	19.7~37.8	1.58~3.67	496.75~576.92	1500~3000
U115 Series	115	65	26.3~44.4	3~6.1	943.2~958.92	1500~3000
U130 Series	130	84	25.9~60.9	5~18	419.2~754.56	400~800
U160 Series	160	106	25.9~60.9	9~32	471.6~670.72	200~500
U200 Series	200	140	25.9~60.9	13~50	408.72~524	100~300

Mode	OD(mm)	ID(mm)	Height(mm)	Rated Torque(Nm)	Rated Power(W)	Rated Speed(rpm)	Voltage(V)
FI-40 Series	40	6.5	48~65	0.25	7.9	300	220
FI-60 Series	60	15	60~80	0.5	15.7	300	220
FE-80 Series	80	15	47~67	1	21	200	220
FI-80 Series	80	12	50	0.9	28.3	300	220
FE-112 Series	112	19	65~95	3	62.9	200	220
FI-120 Series	120	42	64	2.4	37.7	150	220
FE-140 Series	140	30	50~80	6	188.6	300	220
FI-140 Series	140	28	85~188	10.5	220.1	200	220
FE-170 Series	170	42	50~155	4.5	117.9	250	220
FI-170 Series	170	50	50~100	5.4	141.5	250	220
FI-180 Series	180	50	55~125	14	220.1	150	220
FI-220 Series	220	30	123~208	50.6	530.3	100	220
FE-224 Series	224	50	42~62	14.1	295.5	200	220
FI-224 Series	224	50	42	9.9	155.6	150	220
FE-263 Series	263	88	113~188	95	796.5	80	220
FI-280 Series	280	60	95~145	45	565.9	120	220
FI-300 Series	300	150	75	35	330.1	90	220
FI-375 Series	375	88	150~200	200	1257.6	60	220

Series	Types	RotorID	StatorOD	Stator installation pitch circle	Stator shieldOD	Overall thickness
10	Standard Compact	8/10 8/10	36 27	25 23	20	7
15	Standard Compact	12/13/15 12/13/15	40 32	30 28	25	7
20	Standard Standard Compact	6/8/10 15/18/20 18/20	45 45 37	36 36 33	30	7
25	Standard Compact	23/25	50 42	40 38	35	7
30	Standard Compact	28/30	55 47	45 43	40	7
35	Standard Compact	33/35	60 52	50 48	45	7
40	Standard Compact	38/40	65 57	55 53	50	7
45	Standard Compact	43/45	70 62	60 58	55	7
50	Standard Compact	48/50	75 67	65 63	60	7
55	Standard Compact	53/55	80 72	70 68	65	7

Series	Model	Inner rotorThread	Inner rotorMatch ID (H7)	Outer rotor Thread	Outer rotorMatch ID (H7)	StatorMatch ID (H7)
10-15-25	T-10-15-25	M10x0.4mm	9	M15x0.4mm	14	25
15-20-30	T-15-20-30	M15x0.4mm	14	M20x0.4mm	19	30
20-25-35	T-20-25-35	M20x0.4mm	19	M25x0.4mm	24	35
25-30-40	T-25-30-40	M25x0.4mm	24	M30x0.4mm	29	40
30-35-45	T-30-35-45	M30x0.4mm	29	M35x0.4mm	34	45
