U60 Series Frameless BLDC MotorOuter diameter ( OD ) : 60mm

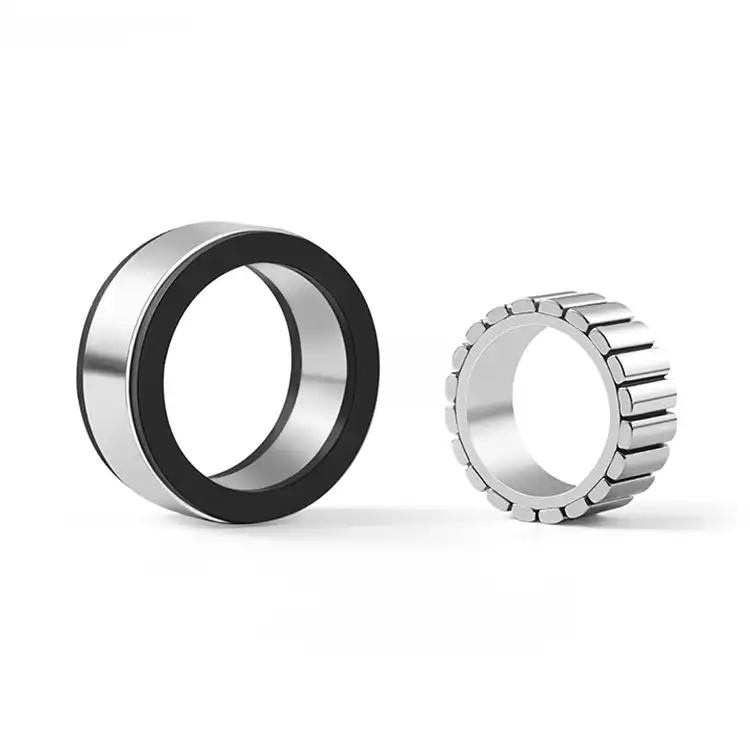

A 60mm OD frameless torque motor can directly drive robot joints with optional rated torque. Highly customizable with various options to meet your specific needs.

Download Catalog

Download 3D Model

Request Quote

Specification

Main Parameters		U6017	U6022	U6035
Voltage(VDC)		48	48	48
Rated Output(W)		142	189	302
Rated torque(Nm)		0.45	0.6	0.96
Instant Max Torque(Nm)		1.3	1.8	2.8
Rated Current(Arms)		3	3.5	9.3
Instant Max Current(Arms)		10	11	28
Rated Speed(rpm)		3000	3000	3000
MaxSpeed(rpm)		6000	6000	6000
Torque Parameter(Nm/Arms)		0.15	0.17	0.1
Rotor inertia 10^-4kg.m²		0.14	0.15	0.31
Back EMF coefficient(Vrims/rad/s)		7	7	7
Resistance(Ω)		1.9	1.6	0.25
Inductance(mH)		1.5	1.1	0.26
Pole-pairs number(2P)		10	10	10
Weight(kg)		0.146	0.205	0.361
Motor height(mm)	L1	10.5	15	28
	L2	10	14.5	27.5
	L3	17.7	22.2	35.8

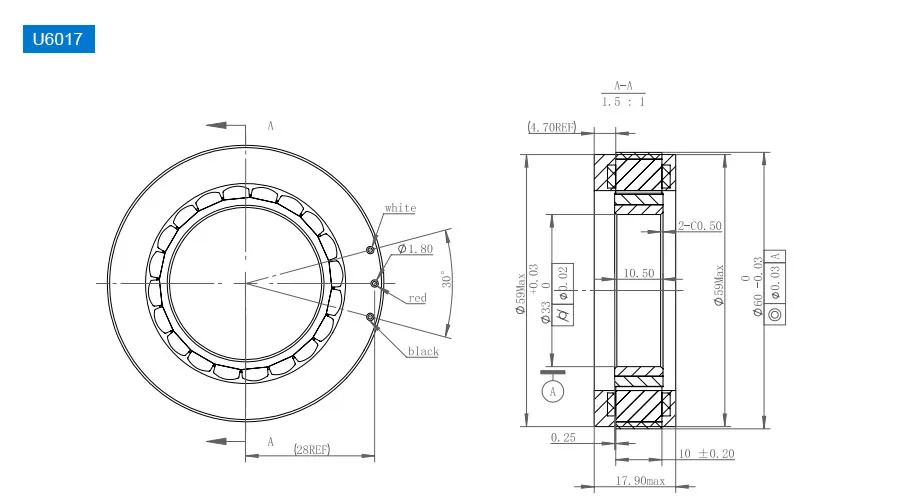

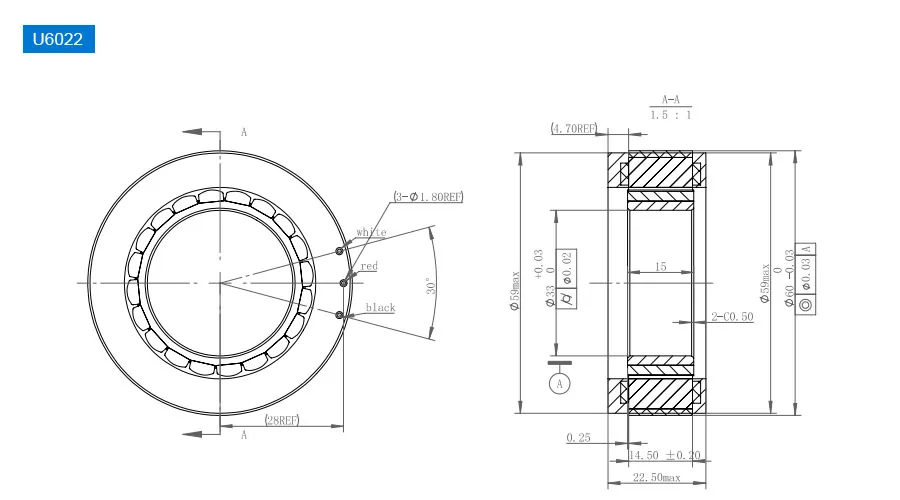

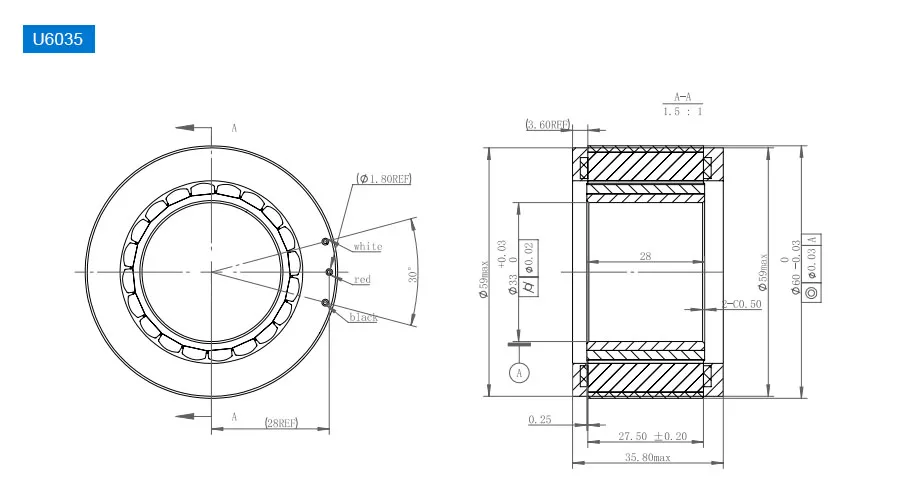

Drawing

Download

U6017 Torque Motor Catalog.pdf
OD: 60mm|Height: 17.7mm
U6022 Torque Motor Catalog.pdf
OD: 60mm|Height: 22.2mm
U6035 Torque Motor Catalog.pdf
OD: 60mm|Height: 35.8mm
U60 Series Frameless BLDC Motor Catalog.pdf
OD: 60mm|Height: 17.7~22.2~35.8mm optional
U6017 Torque Motor 3D Model.stp
OD: 60mm|Height: 17.7mm
U6022 Torque Motor 3D Model.stp
OD: 60mm|Height: 22.2mm
U6035 Torque Motor 3D Model.stp
OD: 60mm|Height: 35.8mm
