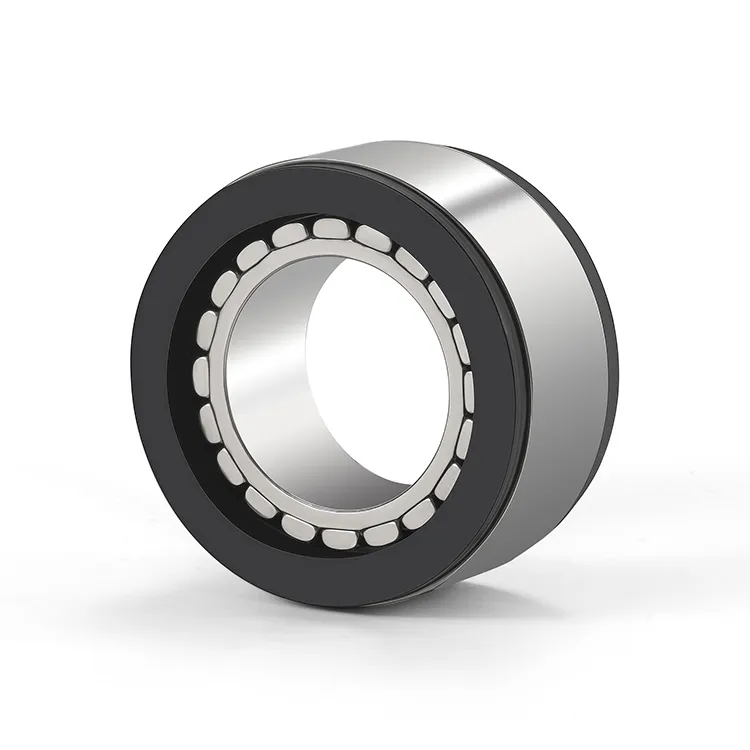

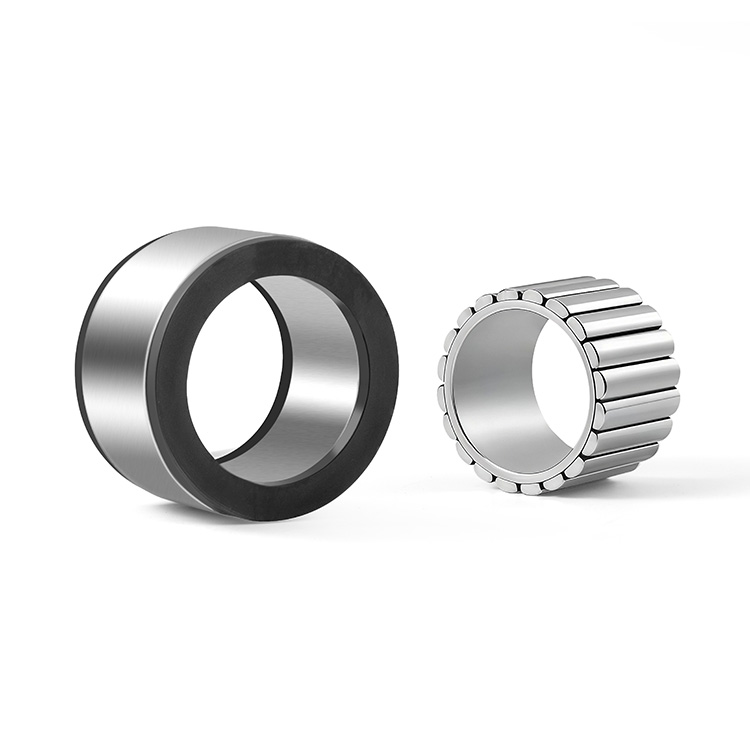

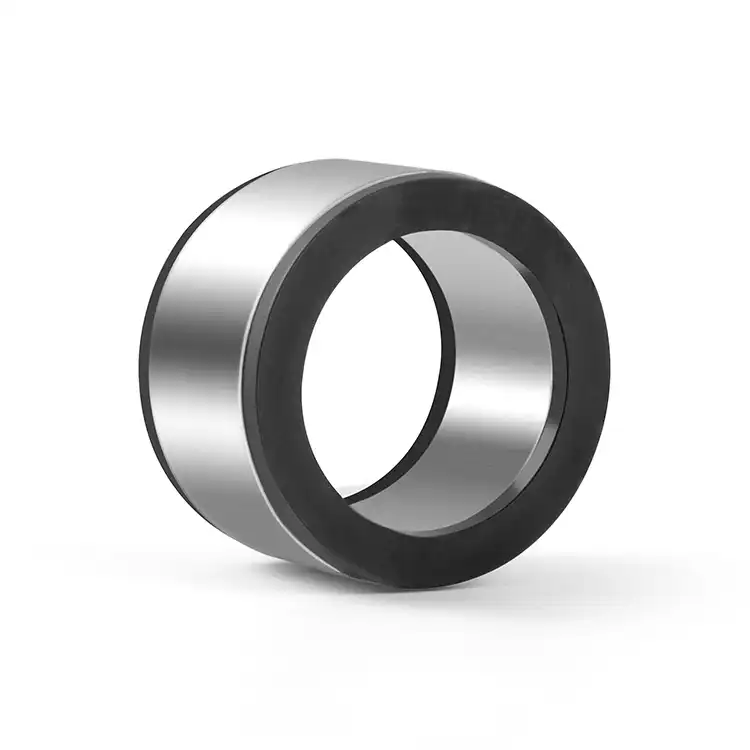

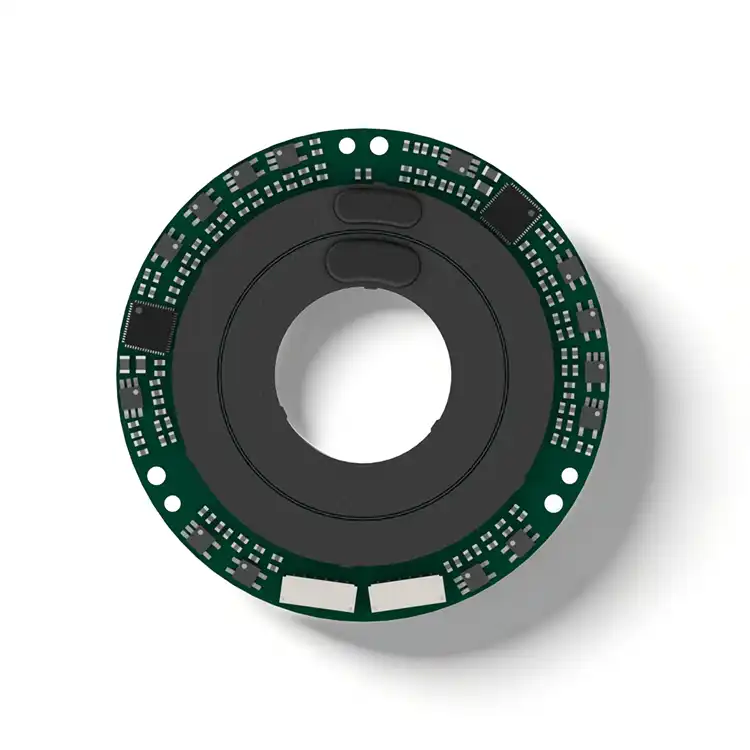

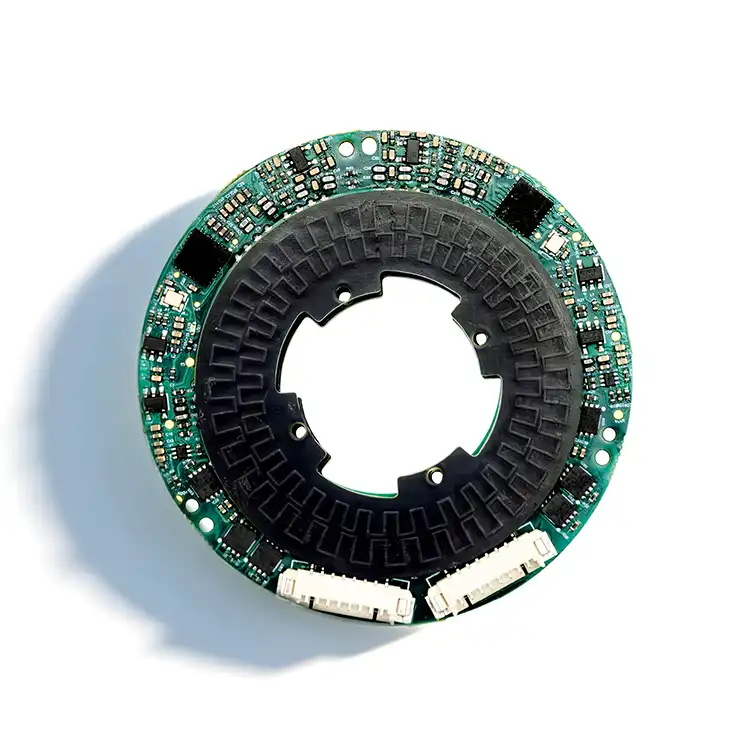

U50 Series Frameless MotorOuter diameter ( OD ) : 50mm

A frameless torque motor (Frameless torque servo motor) with a 28mm aperture and a 50mm outer diameter directly drives robot joints. Rated torque options: 0.27Nm, 0.42Nm, 0.7Nm, and more. Highly customizable.

Download Catalog

Download 3D Model

Request Quote

Specification

Main Parameters		U5019	U5024	U5037
Voltage(VDC)		48	48	48
Rated Output(W)		85	132	220
Rated torque(Nm)		0.27	0.42	0.7
Instant Max Torque(Nm)		0.8	1.2	2
Rated Current(Arms)		3.3	5.5	5.5
Instant Max Current(Arms)		10	17	17
Rated Speed(rpm)		3000	3000	3000
MaxSpeed(rpm)		6000	6000	6000
Torque Parameter(Nm/Arms)		0.08	0.08	0.13
Rotor inertia 10^-4kg.m²		0.08	0.11	0.18
Back EMF coefficient(Vrims/rad/s)		7	7	7
Resistance(Ω)		1.75	0.56	0.74
Inductance(mH)		1.5	0.45	0.59
Pole-pairs number(2P)		10	10	10
Weight(kg)		0.12	0.157	0.266
Motor height(mm)	L1	14	18	30
	L2	13.5	17.5	29.5
	L3	19.8	24.3	37.9

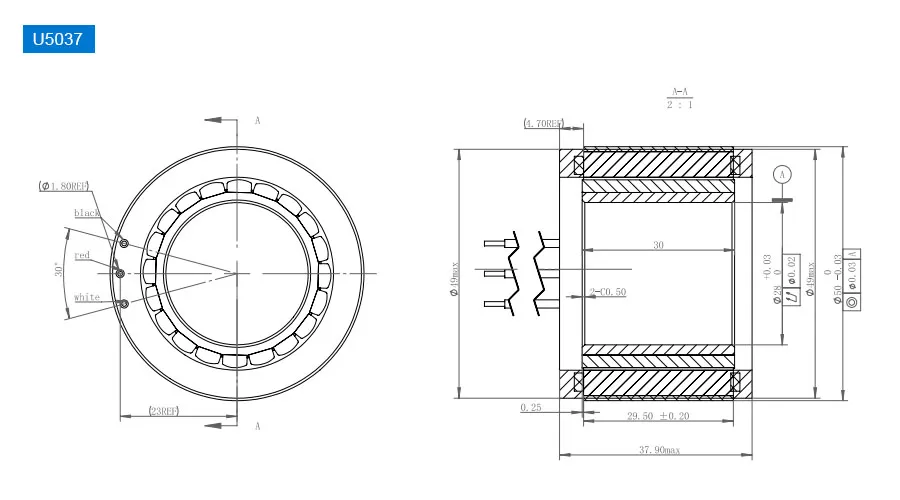

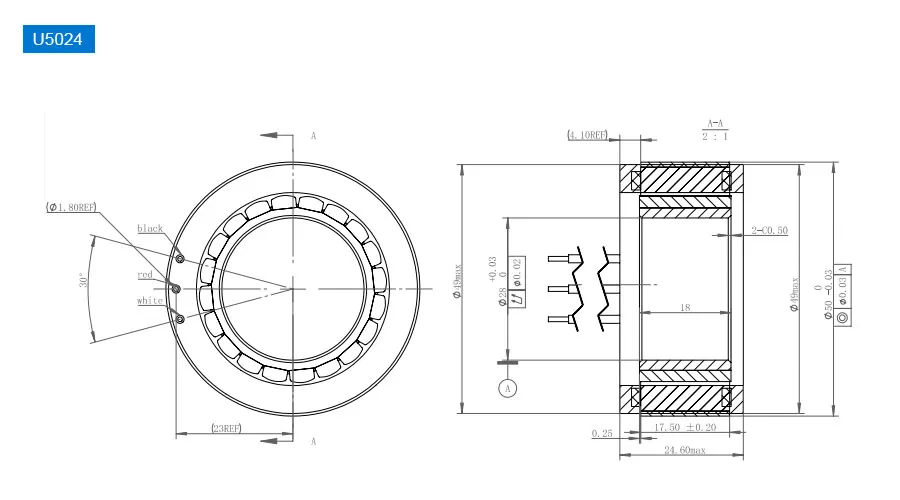

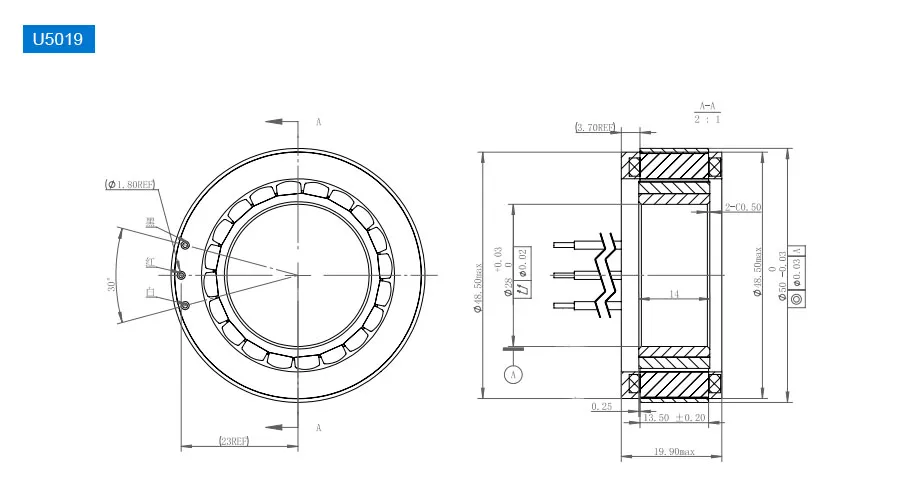

Drawing

Download

U5019 Torque Motor Catalog.pdf
OD: 50mm|Height: 19.8mm
U5024 Torque Motor Catalog.pdf
OD: 50mm|Height: 24.3mm
U5037 Torque Motor Catalog.pdf
OD: 50mm|Height: 37.9mm
U50 Series Frameless Motor Catalog.pdf
OD: 50mm|Height: 19.8~24.3~37.9mm optional
U5019 Torque Motor 3D Model.stp
OD: 50mm|Height: 19.8mm
U5024 Torque Motor 3D Model.stp
OD: 50mm|Height: 24.3mm
U5037 Torque Motor 3D Model.stp
OD: 50mm|Height: 37.9mm
